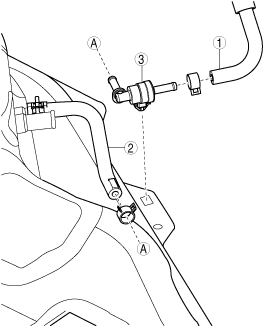

CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]
id0116q8189700
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am6zzw00018136
|
|
1
|
Evaporative hose No.1
|
|
2
|
Evaporative hose No.2
|
|
3
|
Check valve
|
Check valve installation note
1. Install the check valve as shown in the figure.
Evaporative hose No.1 side
am6zzw00018153
|
Evaporative hose No.2 side
am6zzw00018138
|
