DC-DC CONVERTER REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-D 2.2)]

id0117000046j4

Note

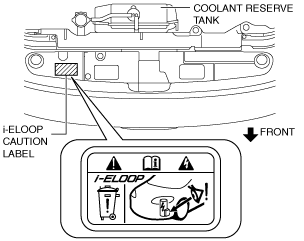

•  The i-ELOOP caution label is adhered to the position shown in the figure below on vehicles with i-ELOOP. When determining if a vehicle in for servicing is equipped with i-ELOOP, refer to the i-ELOOP section. (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)

am6zzw00010292

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner and fresh air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

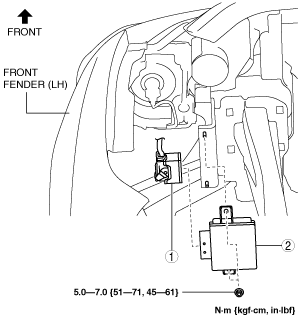

am6zzw00010896

1	DC-DC converter connector (See DC-DC Converter Connector Installation Note.)
2	DC-DC converter

DC-DC Converter Connector Installation Note

1.  Before installation, verify that the connector lever is unlocked position.

ac5wzw00002644

2.  Connect the DC-DC converter connector using the following procedure:

(1)  Insert the DC-DC converter connector straight until it stops.

ac5wzw00002645

(2)  Move the connector lever until a click sound is heard.

ac5wzw00002646
