GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0117008002r2

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery terminals are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery terminal before performing the following operation.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

5.  Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Remove the drive belt auto tensioner. (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

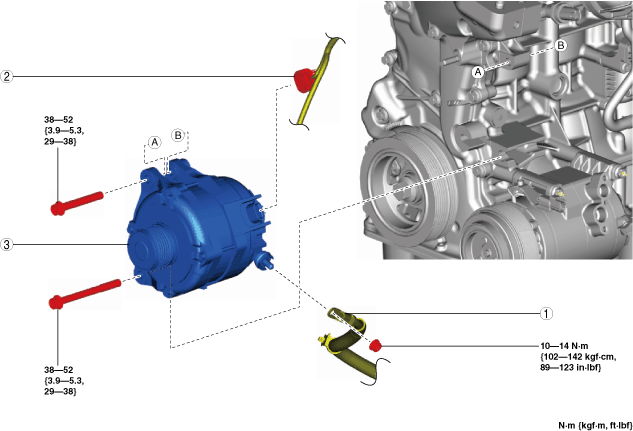

ac9uuw00006462

1	Terminal B cable
2	Generator connector
3	Generator (See Generator Removal Note.) (See Generator Installation Note.)

Generator Removal Note

1.  Remove the bolt shown in the figure and set the PCM wiring harness aside.

am6zzw00017793

2.  Remove the wiring harness bracket using the following procedure.

(1)  Remove the bolts shown in the figure.

ac9uuw00006463

(2)  Remove the wiring harness clips shown in the figure.

ac9uuw00006464

(3)  Remove the wiring harness bracket.

3.  Disconnect the connectors shown in the figure.

ac9uuw00006465

4.  Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5.  Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.

Note

•  The generator can be removed without fully removing the lower bolt from the engine.

6.  Remove the generator upper bolt.

7.  Remove the generator together with the generator lower bolt from the engine.

8.  Remove the generator from above the engine compartment.

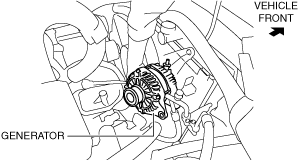

ac9uuw00006466

Generator Installation Note

1.  To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

am6zzw00017990

2.  Temporarily install the generator to the engine with the generator lower bolt.

3.  Align the generator fixing hole with the engine side hole, then temporarily tighten the generator upper bolt.

4.  Tighten the generator bolts in the order shown in the figure.

ac9uuw00006467

5.  Install the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Connect the connectors shown in the figure.

ac9uuw00006465

7.  Install the wiring harness bracket using the following procedure.

(1)  Set the wiring harness bracket to the installation position.

(2)  Install the wiring harness clips shown in the figure.

ac9uuw00006464

(3)  Tighten the bolts shown in the figure.

ac9uuw00006463

Tightening torque

8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}

8.  Install the PCM wiring harness bolt shown in the figure.

am6zzw00017793
