BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0117008005r2

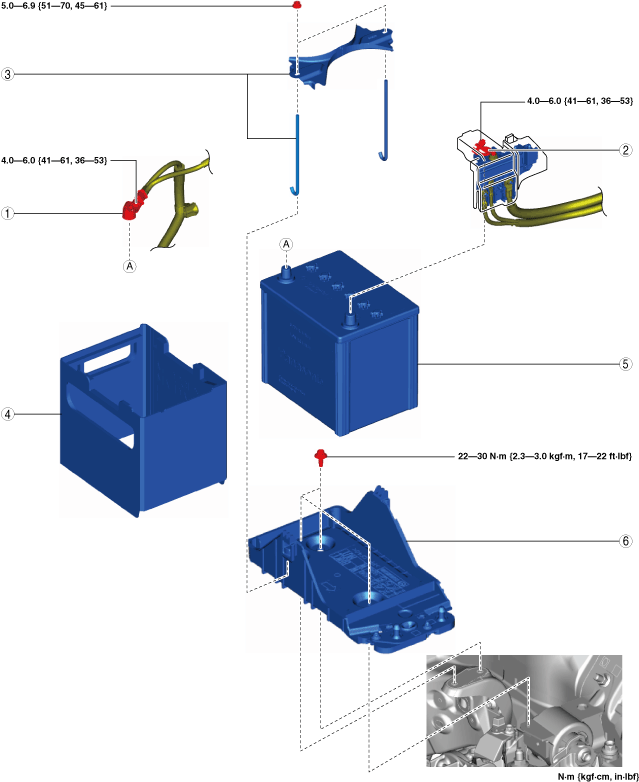

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

ac9uuw00008421

Battery Tray Removal Note

1. Remove the three battery tray bolts so that the battery tray is free to move.

2. Remove the rubber at the two locations on the air cleaner component from the battery tray.

ac9uuw00008422

3. Remove the battery tray.

Battery Tray Installation Note

1. Set the battery tray to the installation position.

2. Tighten the battery tray installation bolts in the order shown in the figure.

ac9uuw00008423

Tightening torque

22—30 N·m {2.3—3.0 kgf·m, 17—22 ft·lbf}

3. Install the rubber at the two locations on the air cleaner component to the battery tray.

ac9uuw00008422

Battery Box Installation Note

1. Install the battery box so that the side with the larger notch is pointed at the engine.

am6xuw00011065

Battery Clamp Installation Note

1. Install the battery clamp as shown in the figure.

ac9uuw00008424

Negative Battery Terminal Connection Note

1. Connect the negative battery terminal as shown in the figure.

am6xuw00011066

1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) (See Negative Battery Terminal Connection Note.)
2	Positive battery terminal
3	Battery clamp (See Battery Clamp Installation Note.)
4	Battery box (See Battery Box Installation Note.)
5	Battery
6	Battery tray (See Battery Tray Removal Note.) (See Battery Tray Installation Note.)
