DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-D 2.2)]

id0117h60045j4

Purpose, Function

• When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

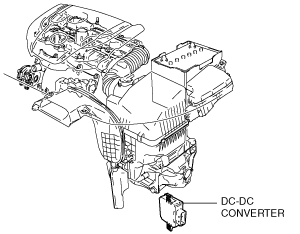

Construction

• The DC-DC converter is installed on the vehicle's left front part (lower part of front combination light).

am6zzn00002458

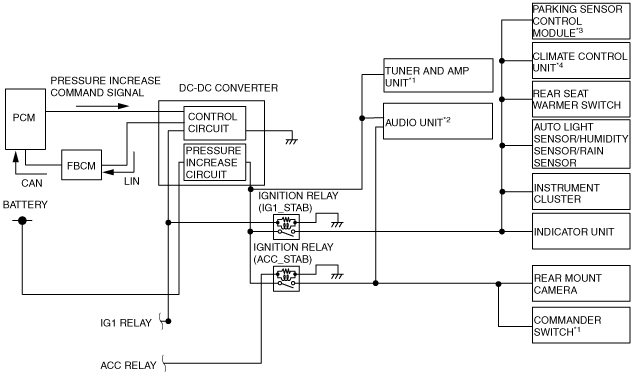

Operation

• The battery voltage increases based on the control signal from the PCM.

am6zzn00004787

*1 :With center display

*2 :Without center display

*3 :With parking sensor system

*4 :Full-auto A/C

• For details of the DC-DC converter control, refer to CONTROL SYSTEM. (See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)

Fail-safe

DTC

Fail-safe

P0A8D:00

P0A94:00

U0298:00

• Inhibits engine-stop by operating the i-stop function.
