CHARGING SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0117r4102900

Note

• For location index of the generator, DC-DC converter (i-ELOOP), capacitor on vehicles with i-ELOOP, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

Outline

• Regulator-less generator (built-in power transistor) has been adopted.

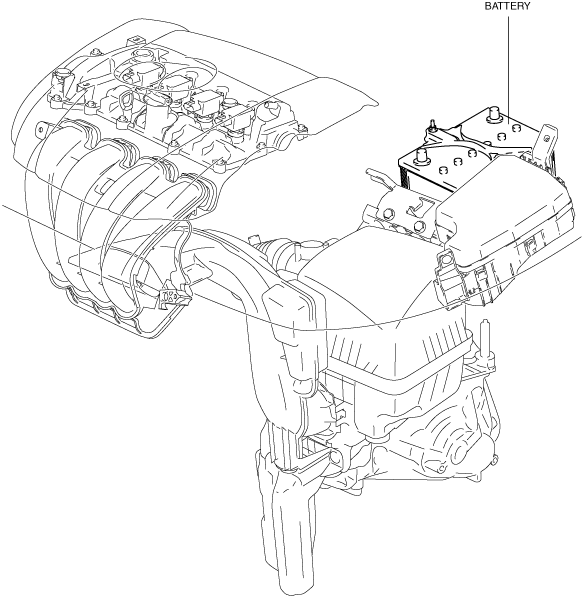

Structural View

am6zzn00005720

Structure

• Consists of the following parts:

Battery

(See BATTERY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

Charging system warning indication/charging system warning light

(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

Battery	(See BATTERY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Charging system warning indication/charging system warning light	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
