DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION))]

id0117r50045u3


Purpose, Function

•  When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

Construction

•  The DC-DC converter is installed on the vehicle's left front part (lower part of front combination light).
ac5wzn00001021

Operation

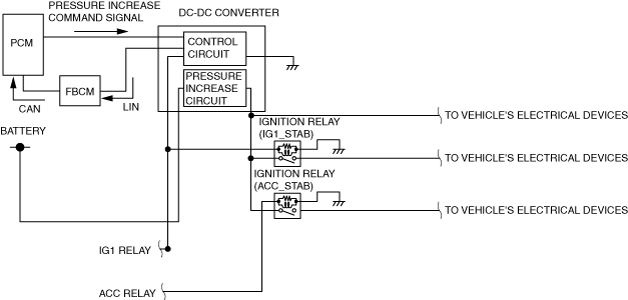

•  The battery voltage increases based on the control signal from the PCM.
ac5wzn00004951
•  For details of the DC-DC converter control, refer to CONTROL SYSTEM (See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].).

Fail-safe

DTC

Fail-safe
P0A8D:00
•  Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
P0A94:00
