IGNITION SYSTEM [SKYACTIV-G 2.5T]

id0118q6108200


Outline

•  A direct ignition system for independent ignition control has been adopted to control voltage depletion and to stabilize the ignition performance of the spark plug.
•  The ion sensor is built into the ignition coil to detect pre-ignition.
•  Iridium spark plugs have been adopted to enhance ignition performance.

Structure

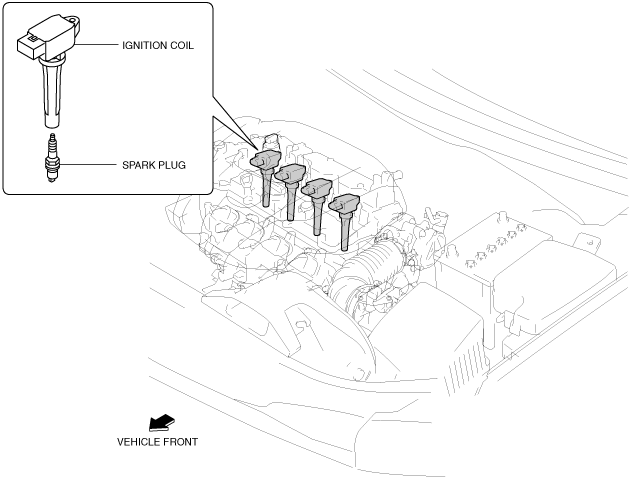

Structural view

ac9uun00001538

•  Consists of the following parts:

Spark plug
(See SPARK PLUG [SKYACTIV-G 2.5T].)
Ignition coil
(See IGNITION COIL [SKYACTIV-G 2.5T].)
