IGNITION COIL [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0118q7000100

Purpose, Function

• The ignition coil generates high voltage by electromagnetic induction to discharge the spark plug.

Construction

• The ignition coil is installed to the upper part of the spark plug (direct ignition coil).

• With the adoption of the direct ignition coil, the ignition system parts have been simplified. As a result, voltage decrease is suppressed and ignition performance for the spark plug is stabilized.

ac5wzn00004952

• The ignition coil is built into the igniter and ion sensor. For the ion sensor, refer to CONTROL SYSTEM. (See ION SENSOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

Operation

• Optimum ignition timing is performed according to the driving conditions by integrating the ignition control function into the PCM.

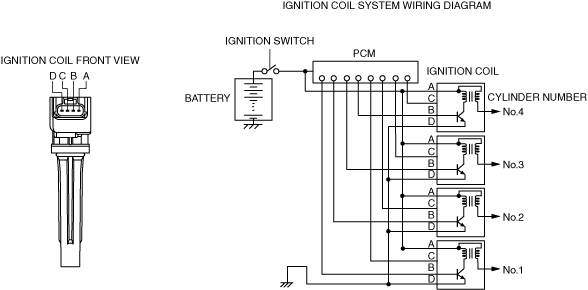

ac5wzn00004953

Fail-safe

DTC

Fail-safe

P0300:00

• Limits intake air amount

• Implement fuel-cut control (if the catalytic converter may be damaged, perform fuel-cut on cylinder misfiring the most).

P0301:00

P0302:00

P0303:00

P0304:00

DTC	Fail-safe
P0300:00	• Limits intake air amount • Implement fuel-cut control (if the catalytic converter may be damaged, perform fuel-cut on cylinder misfiring the most).
P0301:00 P0302:00 P0303:00 P0304:00
