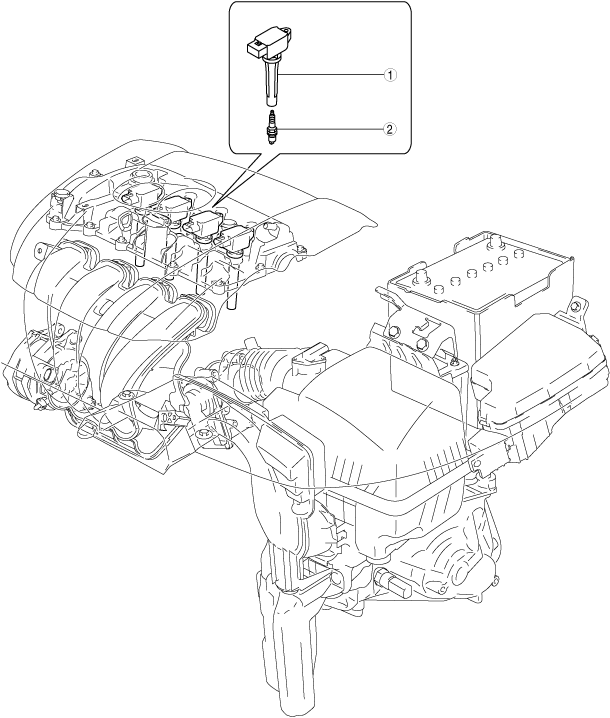

IGNITION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0118q8800100

am6xuw00011227

1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See IGNITION COIL INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See SPARK PLUG INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
