STARTING SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0119s1105200

Outline

• A coaxial reduction type starter has been adopted.

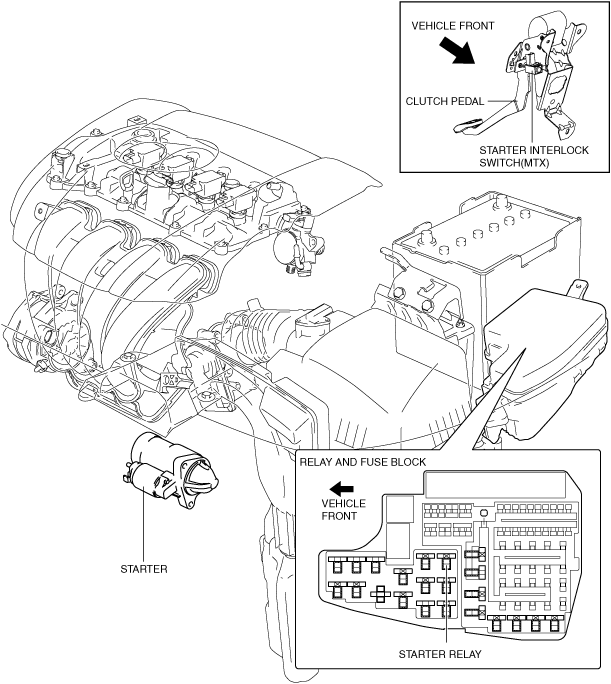

Structural View

am6zzn00005986

Structure

• Consists of the following parts:

Starter	(See STARTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Starter relay	(See STARTER RELAY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
Starter interlock switch (MTX)	(See STARTER INTERLOCK SWITCH [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
