CRUISE MAIN INDICATION (WHITE), CRUISE SET INDICATION (GREEN) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]
id0120q4100600
Purpose
Cruise main indication (white)
• The cruise main indication (white) is displayed on the instrument cluster multi-information display while the cruise control system is on stand-by to inform the driver that the cruise control system is on stand-by.
Cruise set indication (green)
• The cruise set indication (green) is displayed on the instrument cluster multi-information display while the cruise control system is operating to inform the driver that the cruise control system is operating.
Function

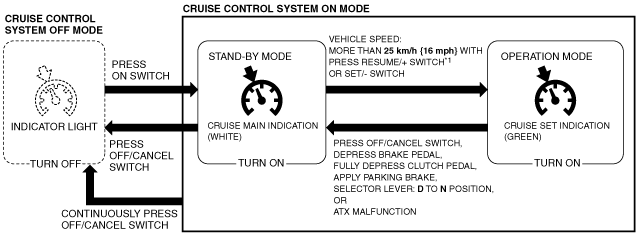

• The indication conditions for the cruise main indication (white) and cruise set indication (green) are as follows.
*1 :The PCM stores the previous set speed
Construction

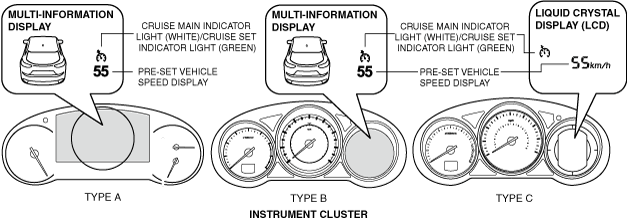

• The cruise main indication (white) and cruise set indication (green) are built into the instrument cluster.
Operation

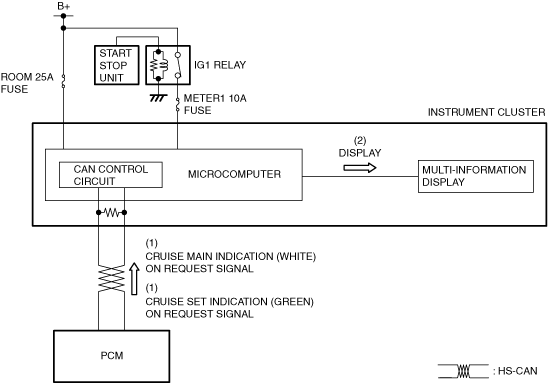

1. The instrument cluster receives (1) a cruise main indication (white) on request signal or a cruise set indication (green) on request signal from the PCM via CAN communication.
2. The instrument cluster displays (2) the cruise control system status on the multi-information display based on the cruise main indication (white) on request signal or the cruise set indication (green) on request signal.
Fail-safe
• Not applicable
