THROTTLE POSITION (TP) SENSOR [SKYACTIV-G 2.5T]

id0140h0006900


Purpose

•  The TP sensor detects the actual throttle valve opening angle.

Function

•  The TP sensor sends the throttle valve opening angle to the PCM as a throttle valve position signal.
•  For the throttle valve position signal, main (No.1) and sub (No.2) signals of different characteristics have been adopted to enhance sensor malfunction detection accuracy.

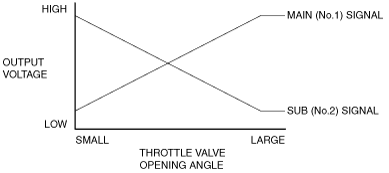

TP sensor characteristic

ardjjn00001667

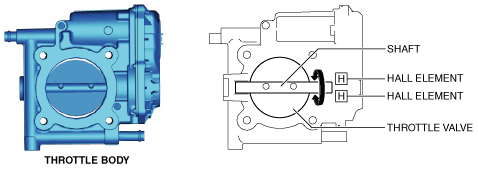

Construction

•  The TP sensor is built into the throttle body and coaxially arranged with the throttle valve shaft.
•  Non-contact hall elements have been adopted for the detection area of the TP sensor.
•  The Hall elements detect the magnetic field which changes as the shaft rotates and outputs it as a voltage value.
ac9uun00002344

Operation

1.  The TP sensor detects (1) the throttle valve opening angle.

2.  The TP sensor sends (2) the detected throttle valve opening angle to the PCM as a throttle valve position main (No.1) and sub (No.2) signals.

amxuun00001434

Fail-safe

DTC No.

Fail-safe function
P0122:00
•  Restricts the upper limit of the engine speed.
P0123:00
•  Restricts the upper limit of the engine speed.
•  PCM restricts engine torque.
P0222:00
•  Restricts the upper limit of the engine speed.
P0223:00
•  Restricts the upper limit of the engine speed.
P2101:00
•  Restricts the upper limit of the engine speed.
•  Stops the drive-by-wire control (throttle valve is open at approx. 8° by return spring force).
P2109:00
•  Restricts the upper limit of the engine speed.
•  Stops the drive-by-wire control (throttle valve is open at approx. 8° by return spring force).
P2135:00
•  Restricts the upper limit of the engine speed.
•  Stops the drive-by-wire control (throttle valve is open at approx. 8° by return spring force).
