i-stop OFF SWITCH [SKYACTIV-G 2.5T]

id0140h0008000


Purpose/Function

•  i-stop control is inhibited by turning on the i-stop OFF switch.

Construction

•  Installed to the switch panel.
ac5wzn00004630

Operation

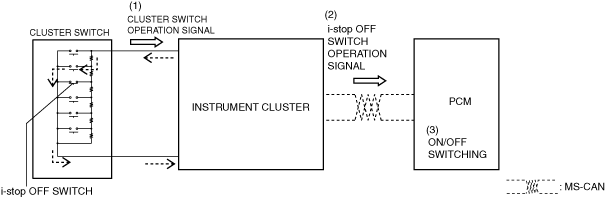

1.  When the i-stop OFF switch is operated, a cluster switch operation signal is sent (1) to the instrument cluster.

2.  The instrument cluster sends (2) the i-stop OFF switch operation signal to the PCM based on the switch operation signal (detected voltage).

3.  When the PCM receives the i-stop OFF switch operation signal from the instrument cluster, it switches the i-stop control on/off (3).

ac5wzn00004631

Fail-safe

•  Function not equipped.
