ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-G 2.5T]
id0140h0687900
Outline
• Calculates the engine oil replacement period as an appropriate target period for replacing the engine oil.

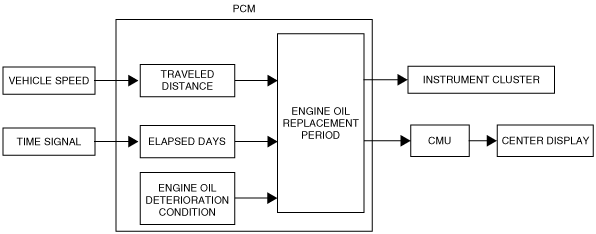

Block Diagram
Operation
• The PCM performs the following calculations, and when any of the following exceed their specifications, it determines that the engine oil replacement period has been reached.
-
― Traveled distance
― Elapsed days
― Engine oil deterioration condition
• When the PCM determines that the engine oil replacement period has been reached, the wrench indicator light illumination request signal is sent to the instrument cluster.
In flexible setting (European (L.H.D.) specs. only)
• While in flexible setting, the PCM determines that the engine oil replacement period has been reached when the traveled distance, elapsed days, or engine oil deterioration has been determined.
• “Set/Reset” in flexible setting can be selected using the center display.
In fixed setting
• The connectivity master unit (CMU) determines that the preset maintenance period approaches.
