MASS AIR FLOW (MAF) SENSOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]
id0140h1007000
Purpose/Function
• Detects the intake airflow amount introduced into the cylinder as basic information for mainly determining the fuel injection amount.
• Detects the intake airflow amount introduced into the cylinder and sends it to the PCM as an intake airflow amount signal.
Construction

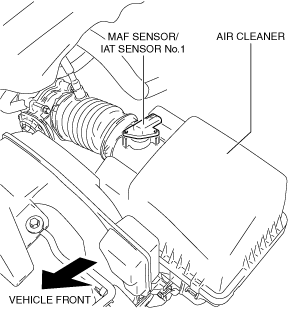

• Installed on the air cleaner.
• A hot film has been adopted as the detecting element for detecting the intake airflow amount.
• IAT sensor No.1 is integrated.
Operation
• Sends a signal to the PCM via SENT communication which fluctuates according to the intake airflow amount.
Fail-safe
|
DTC No.
|
Fail-safe function
|
|
p0110:00
|
• Restricts the upper limit of the engine speed.
• Inhibits the evaporative purge control.
|
