i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0140h1008700

Purpose, Function

• If the i-stop control inhibits the operation, the i-stop warning light (amber) flashes/illuminates to inform the driver that the i-stop control inhibits the operation.

Construction

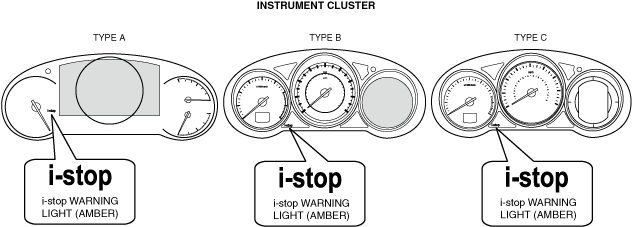

• The i-stop warning light (amber) is built into the instrument cluster.

am6zzn00005738

• For vehicles with center display, a warning message in the center display is displayed when the i-stop warning light (amber) is illuminated or flashes. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Operation

• The flashing/illumination conditions of the i-stop warning light (amber) are as follows:

i-stop warning light (amber) flashing condition

― Any of the following DTCs are stored:

PCM DTC

• For details on DTCs, refer to [Engine On-board Diagnostic System]. (See ON-BOARD DIAGNOSTIC SYSTEM [PCM (SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION))].)

TCM DTC

• For details on DTCs, refer to [Transmission/Transaxle On-board Diagnostic System]. (See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION INDICATION FUNCTION [TCM (FW6A-EL)].)

DSC HU/CM DTC

• For details on DTCs, refer to [Brake On-board Diagnostic System]. (See ON-BOARD DIAGNOSTIC SYSTEM [DYNAMIC STABILITY CONTROL (DSC)].)

EPS control module DTC

• For details on DTCs, refer to [Steering On-board Diagnostic System]. (See ON-BOARD DIAGNOSTIC SYSTEM [ELECTRIC POWER STEERING (EPS)].)

i-stop warning light (amber) illumination condition

― Any one of the following conditions is met:

• Ignition switched ON (check of i-stop control system)

• i-stop OFF switch is on

• Engine stalls due to driver's operation while engine is stopped by i-stop control^*

• Communication error to PCM and instrument cluster

* :When an engine failure is carried out by a driver's operation, a message is displayed on a multi information display. Please refer to a "MULTI INFORMATION DISPLAY" for the contents of the message. (See MULTI-INFORMATION DISPLAY.)

• The PCM sends an i-stop warning light (amber) flashing/illumination request to the instrument cluster via CAN communication.
