ENGINE CONTROL SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0140h1139900

Outline

• Engine coolant is supplied to the appropriate engine coolant passage according to the engine load conditions.

• Further engine warming has been promoted by blocking each water passage while the engine is cool.

― Coolant control valve adopted

• Pumping loss due to intake/exhaust stroke is reduced to improve fuel economy during low engine loads.

― Cylinder deactivation control adopted

Structural View

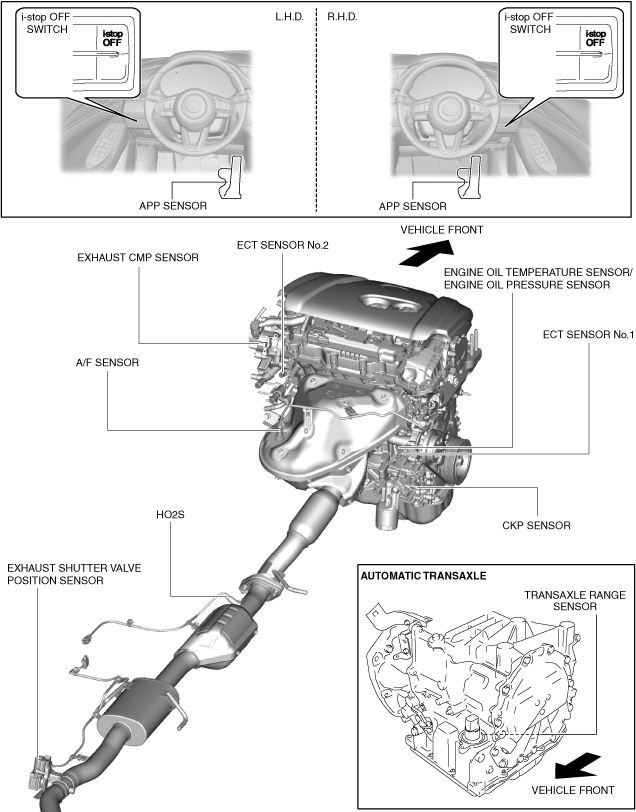

Input device

ac5wzn00004665

am6zzn00005705

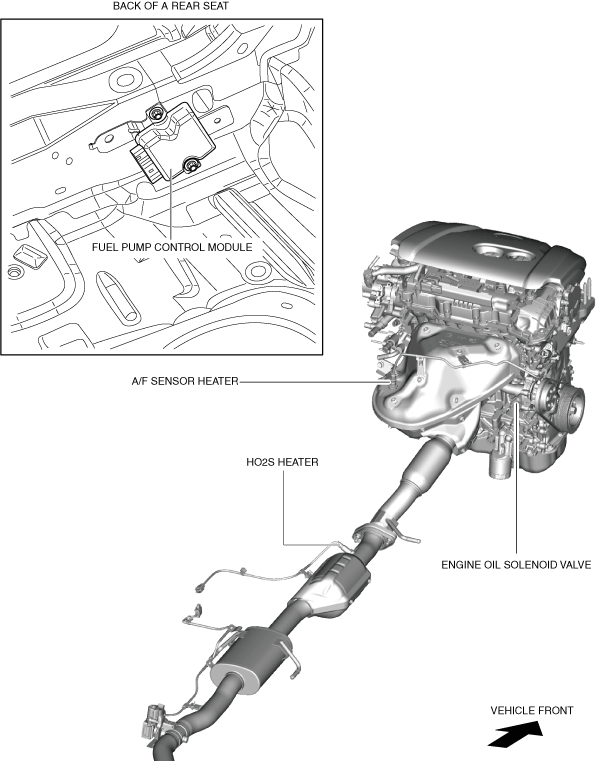

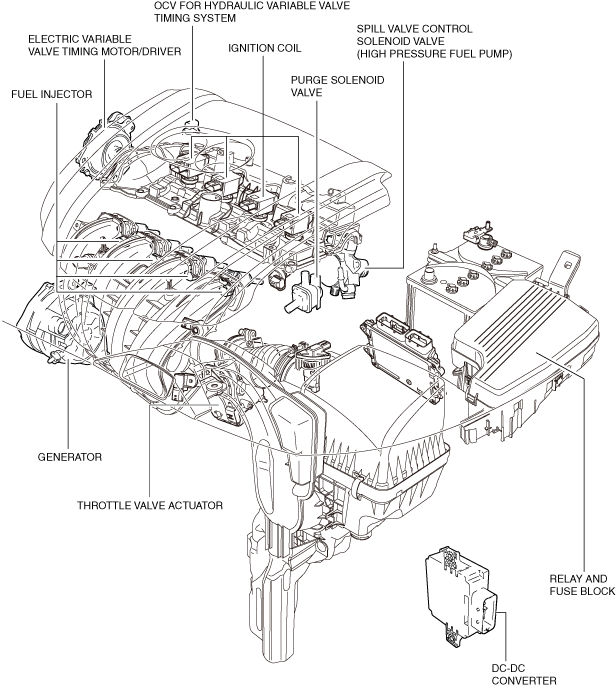

Output device

ac5wzn00004612

ac5wzn00004613

System Diagram

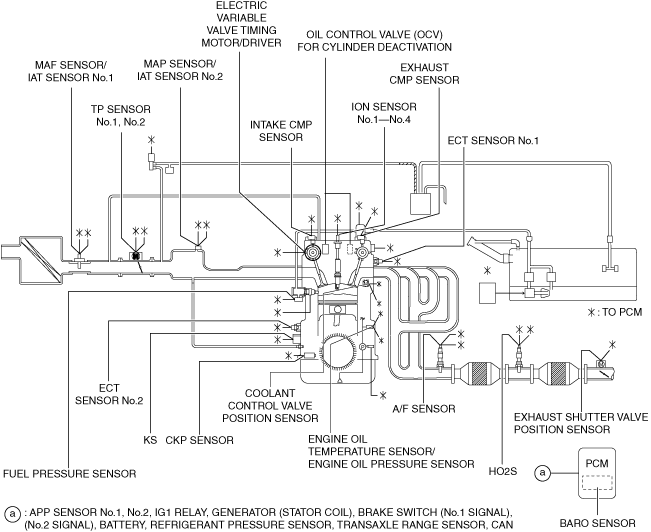

Input device

am6zzn00006049

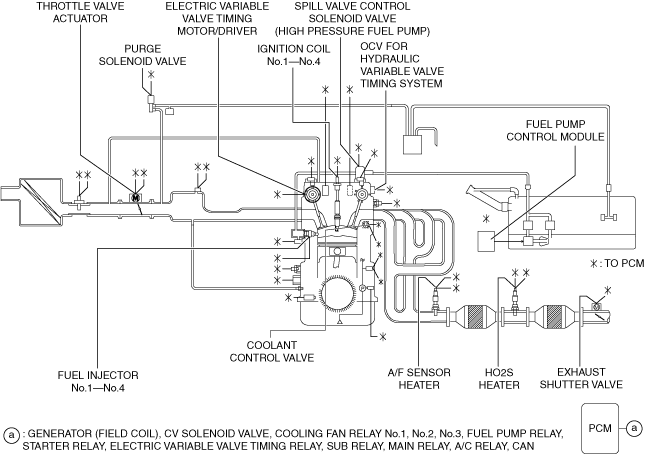

Output device

am6zzn00006050

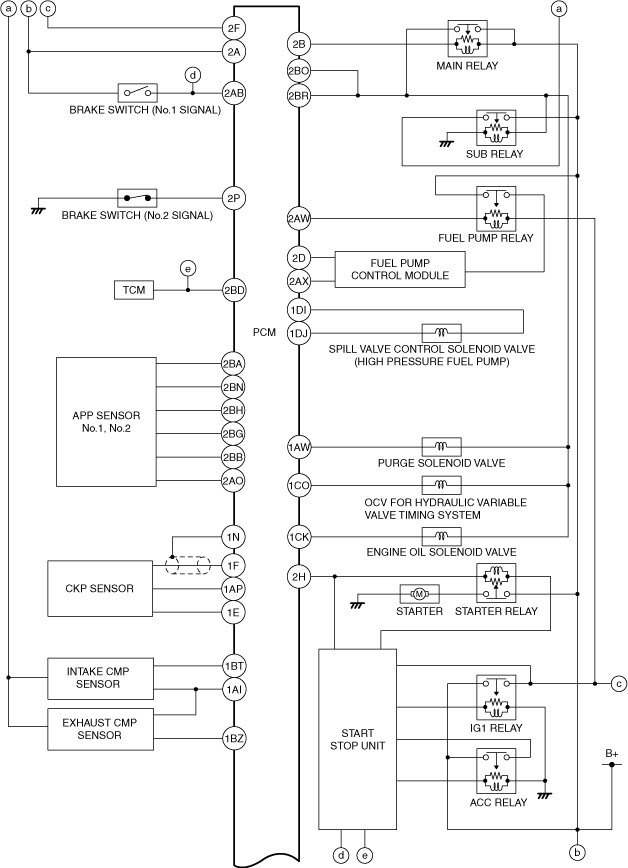

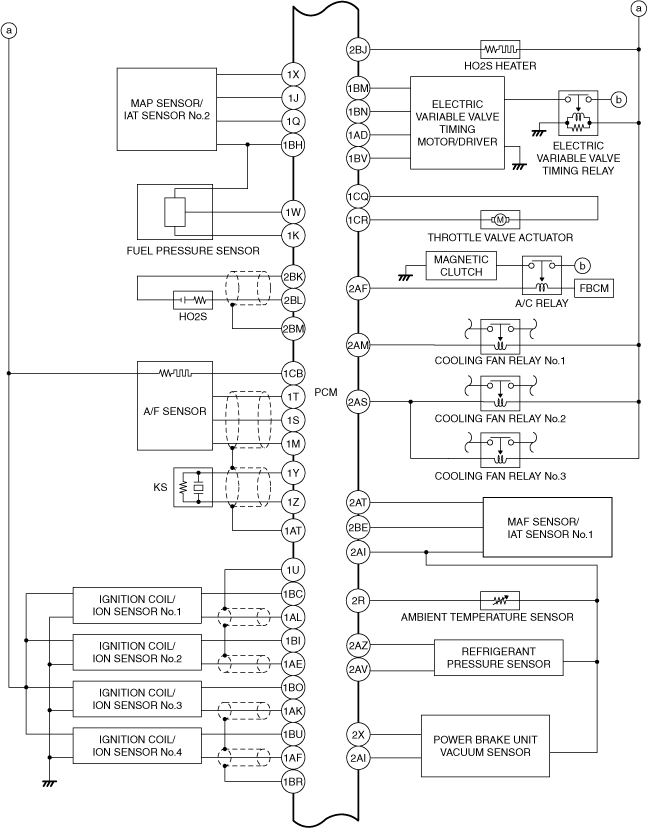

System Wiring Diagram

am6zzw00017111

am6zzw00017112

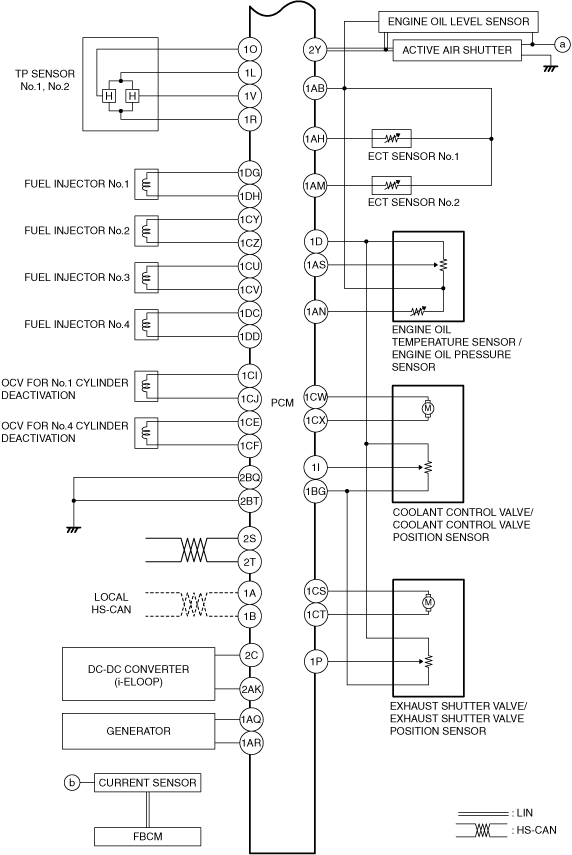

am6zzw00017113

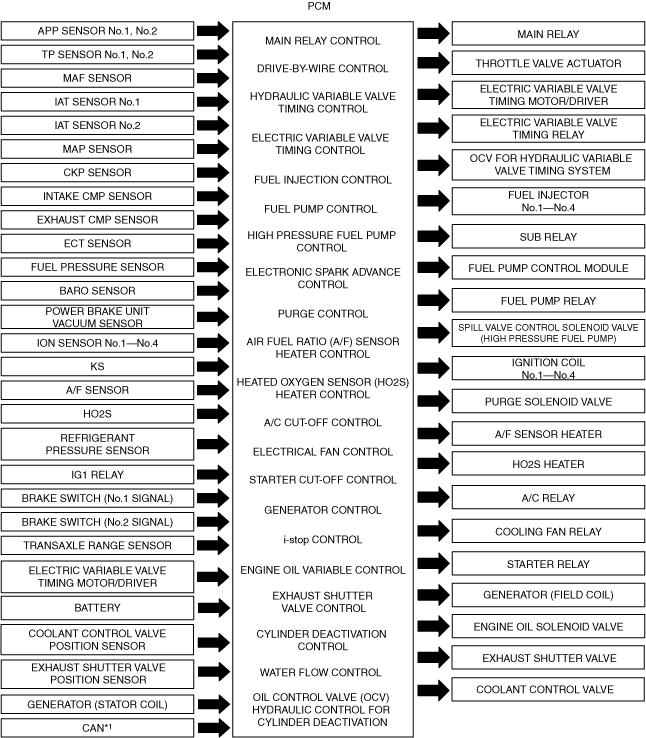

Block Diagram

ac5wzn00004673

*1 :TCM, DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

Relation Chart

• Each control system and their related input and output parts are as follows.

×: Applicable

Item

Input device

APP sensor No.1, No.2

×

×

×

×

×

×

×

×

×

×

TP sensor No.1, No.2

×

×

×

×

×

×

MAF sensor

×

×

×

×

×

×

×

×

×

×

IAT sensor No.1

×

×

×

×

×

×

×

×

×

×

×

IAT sensor No.2

×

×

×

×

×

×

×

MAP sensor

×

×

×

×

×

×

×

CKP sensor

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Intake CMP sensor

×

×

×

×

×

Exhaust CMP sensor

×

×

×

×

×

×

ECT sensor

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Fuel pressure sensor

×

×

×

×

×

BARO sensor

×

×

×

×

×

×

×

Power brake unit vacuum sensor

×

Exhaust shutter valve position sensor

×

Engine oil temperature sensor

×

×

×

Coolant control valve position sensor

×

Ion sensor No.1—No.4

×

×

KS

×

A/F sensor

×

×

HO2S

×

Refrigerant pressure sensor

×

×

IG1 relay

×

×

×

×

×

×

×

×

×

Brake switch (No.1 signal)

×

×

Brake switch (No.2 signal)

×

Transaxle range sensor

×

×

×

×

Electric variable valve timing motor/driver

×

×

Battery

×

×

×

×

×

×

×

×

Generator (Stator coil)

×

CAN^*1

×

×

×

×

×

×

×

×

×

×

Output device

Main relay

×

Throttle valve actuator

×

×

×

Electric variable valve timing motor/driver

×

×

×

Electric variable valve timing relay

×

×

OCV

×

Fuel injector No.1—No.4

×

×

×

Sub relay

×

×

×

Fuel pump control module

×

Fuel pump relay

×

Spill valve control solenoid valve (High pressure fuel pump)

×

Ignition coil No.1—No.4

×

×

Purge solenoid valve

×

A/F sensor heater

×

HO2S heater

×

A/C relay

×

Cooling fan relay No.1, No.2, No.3

×

Starter relay

×

×

Generator (Field coil)

×

×

Spark plug

×

Oil pump

×

Engine oil solenoid valve

×

OCV for cylinder deactivation

×

×

*1 :TCM, DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

Item
Input device
APP sensor No.1, No.2		×	×		×			×	×		×	×			×			×		×
TP sensor No.1, No.2		×			×						×				×			×		×
MAF sensor		×	×	×	×		×	×	×			×			×	×
IAT sensor No.1		×		×	×			×	×			×		×	×			×	×	×
IAT sensor No.2		×		×	×			×							×			×		×
MAP sensor		×		×	×			×	×						×	×
CKP sensor		×	×	×	×	×	×	×	×		×	×	×	×	×	×		×	×	×
Intake CMP sensor		×		×	×			×							×
Exhaust CMP sensor		×	×		×		×	×							×
ECT sensor		×			×		×	×	×		×	×	×	×	×	×		×	×	×
Fuel pressure sensor		×			×	×	×								×
BARO sensor		×		×	×	×			×			×			×
Power brake unit vacuum sensor															×
Exhaust shutter valve position sensor																	×
Engine oil temperature sensor			×	×															×
Coolant control valve position sensor																			×
Ion sensor No.1—No.4				×	×
KS								×
A/F sensor					×				×
HO2S					×
Refrigerant pressure sensor											×	×
IG1 relay	×		×		×	×		×		×		×	×		×
Brake switch (No.1 signal)		×													×
Brake switch (No.2 signal)		×
Transaxle range sensor		×			×								×		×
Electric variable valve timing motor/driver				×											×
Battery			×			×	×	×	×					×	×				×
Generator (Stator coil)		×
CAN^*1		×			×	×		×			×	×	×	×	×				×
Output device
Main relay	×
Throttle valve actuator		×													×			×
Electric variable valve timing motor/driver				×	×										×
Electric variable valve timing relay				×											×
OCV			×
Fuel injector No.1—No.4					×										×			×
Sub relay					×										×			×
Fuel pump control module						×
Fuel pump relay						×
Spill valve control solenoid valve (High pressure fuel pump)							×
Ignition coil No.1—No.4								×							×
Purge solenoid valve									×
A/F sensor heater										×
HO2S heater										×
A/C relay											×
Cooling fan relay No.1, No.2, No.3												×
Starter relay													×		×
Generator (Field coil)														×	×
Spark plug																		×
Oil pump																		×
Engine oil solenoid valve																×
OCV for cylinder deactivation																		×		×
