ENGINE OIL PRESSURE SENSOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0140h1257000

Purpose/Function

• Detects the engine oil pressure as basic information for mainly idle speed control.

• Detects the engine oil pressure and sends it to the PCM as an engine oil pressure signal.

Construction

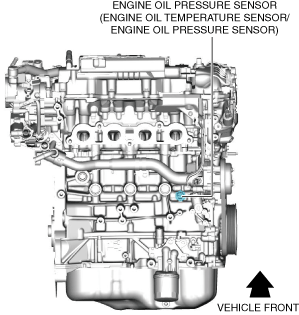

• Installed on the cylinder block.

ac5wzn00004473

• A semiconductor strain gauge has been adopted to the engine oil pressure sensor (as the detecting element) for detecting the engine oil pressure.

• The engine oil pressure sensor is integrated with the engine oil temperature sensor.

Operation

• Sends the signal, which fluctuates according to the engine oil pressure, to the PCM.

ac3wzn00000802

Engine oil pressure sensor characteristic

am2zzn00003693

Fail-safe

DTC No.

Fail-safe function

P0522:00

• Limits the engine torque or the upper limit of the engine speed.

P0523:00

DTC No.	Fail-safe function
P0522:00	• Limits the engine torque or the upper limit of the engine speed.
P0523:00
