MASS AIR FLOW (MAF) SENSOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0140h4007000


Purpose/Function

•  Detects the intake airflow amount introduced into the cylinder as basic information (mainly used to determine the fuel injection amount) and sends it to the PCM as an intake airflow amount signal.

Construction

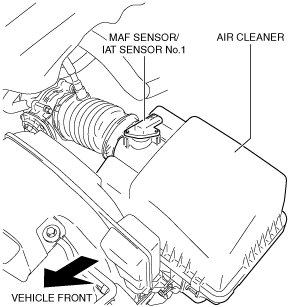

•  Installed on the air cleaner.
ac5uun00003622
•  A hot film has been adopted as the detecting element for detecting the intake airflow amount.
•  IAT sensor No.1 is integrated.
ac5uun00003623

Operation

•  Sends a signal to the PCM via SENT communication which fluctuates according to the intake airflow amount.
ac5uun00003970

Fail-safe

DTC No.

Fail-safe function
P0100:00
•  Restricts the upper limit of the engine speed.
•  Inhibits the evaporative purge control.
P0102:00
•  Restricts the upper limit of the engine speed.
•  Inhibits the evaporative purge control.
P0103:00
•  Restricts the upper limit of the engine speed.
•  Inhibits the evaporative purge control.
