MAIN RELAY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]
id0140h4008300
Purpose/Function
• Supplies power to each part.
• Supplies battery voltage to each part based on the signals from the PCM even though the ignition is switched ON or off.
Construction

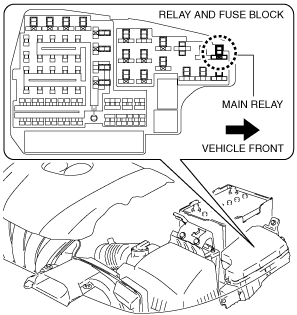

• Installed to the relay and fuse block.
Operation
• After the contact point is on battery voltage is supplied to the coil based on the signals from the PCM.
Fail-safe
• Function not equipped.
