FUEL PRESSURE SENSOR [SKYACTIV-D 2.2]

id0140z7006100

Purpose/Function

• Detects the fuel pressure in the fuel supply line as basic information for mainly determining the fuel injection amount.

• Detects the fuel pressure in the fuel supply line and inputs it to the PCM as a fuel pressure signal.

Construction

• Built into the fuel injector.

ac8wzn00000498

• A piezoelectric element has been adopted as the detecting element for detecting the fuel pressure.

Operation

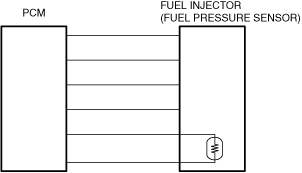

• Sends the signal, which fluctuates according to the fuel pressure, to the PCM.

ac8wzn00000499

Fuel pressure sensor characteristic

ac5wzn00001606

Fail-safe

DTC No.

Fail-safe function

P10CD:00

•  Limits engine torque.

•  Limits the maximum engine speed.

•  Inhibits the EGR control.

•  Limits the engine transaxle total control.

•  Inhibits engine-stop by operating the i-stop function.

•  Stops the G-vectoring control (GVC).

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.
