CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-D 2.2]

id0140z7006300

Purpose/Function

• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing.

• Detects the crankshaft speed and inputs it to the PCM as a CKP signal.

Construction

• Installed on the side of the cylinder block (right side).

am6zzn00002920

• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.

Operation

• Inputs the signal, which fluctuates according to the crankshaft speed, to the PCM.

am6zzn00002921

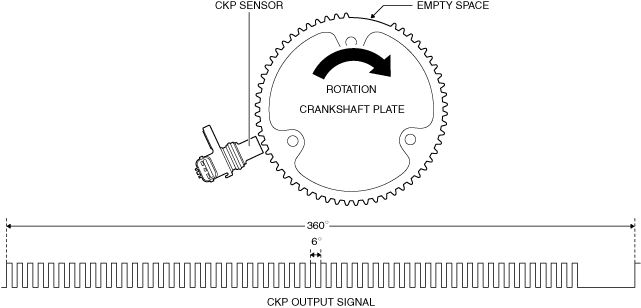

CKP sensor characteristic

am6zzn00001860

Fail-safe

DTC No.

Fail-safe function

P0016:00

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

•  Inhibits engine-stop by i-stop control.
