CAMSHAFT POSITION (CMP) SENSOR [SKYACTIV-D 2.2]

id0140z7006700

Purpose/Function

• Detects the camshaft speed as basic information for mainly determining the fuel injection timing.

• Detects the camshaft speed and inputs it to the PCM as a CMP signal.

Construction

• Installed on the cylinder head.

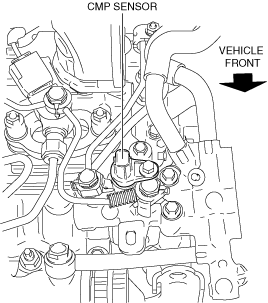

ac5jjn00001381

• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the camshaft speed.

Operation

• Inputs the signal, which fluctuates according to the camshaft speed, to the PCM.

ac5wzn00001613

CMP sensor characteristic

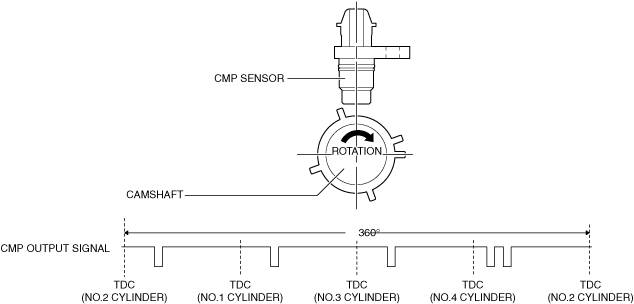

am6zzn00001861

Fail-safe

DTC No.

Fail-safe function

P0016:00

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

•  Inhibits engine-stop by i-stop control.
