DOSING CONTROL UNIT [SKYACTIV-D 2.2]

id0140z7011000


Purpose, Function

•  Reduction of NOx in the exhaust gas has been achieved by optimally controlling the SCR system (such as AdBlue® injection amount) according to the vehicle conditions.
•  Controls each output part based on a signal from each input part.
•  The controlled functions are as follows.

Functions

Content
AdBlue® injection control
The dosing control unit controls the optimum AdBlue® injection amount according to the vehicle conditions to reduce NOx.
Heater control
The dosing control unit controls the heater (urea tank, urea hose) to keep warm/defrost AdBlue® according to the surrounding environment and AdBlue® conditions.
NOx sensor activation control
The dosing control unit controls the signal from the NOx sensor.
Diesel particulate filter malfunction diagnosis
The dosing control unit performs a part of the diesel particulate filter malfunction diagnostic function.
PM sensor activation control
The dosing control unit controls the sensing function of the PM sensor.


Construction

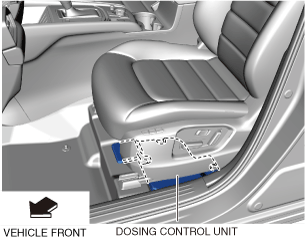

•  The dosing control unit is installed below the driver seat.
ac5uun00003526

Operation

•  If the SCR catalyst temperature exceeds 180 degrees C, the NOx sensor is activated, and NOx is detected, the AdBlue® injection function operates according to the purification rate of the catalyst.
•  Activation of the NOx sensor and PM sensor is controlled at the timing according to the surrounding environment.

Fail-safe

DTC No.

Fail-safe function
P1640:00
•  The dosing control unit performs control according to the fail-safe contents of the detected DTC.
