UREA QUALITY SENSOR [SKYACTIV-D 2.2]

id0140z7019200

Purpose, Function

• The urea quality sensor detects the AdBlue^® concentration in the urea tank.

• The detected concentration is sent to the PCM via a CAN signal from the dosing control unit after sending it to the dosing control unit via SENT communication.

Construction

• The urea quality sensor is installed in the urea tank.

am6zzn00005619

Operation

• The urea quality sensor is supplied power from the dosing control unit and initiates measuring the AdBlue^® concentration.

• After supplying the power, it begins measuring the initial concentration after approx. 9 s, and then performs the measurement approx. every 21 s.

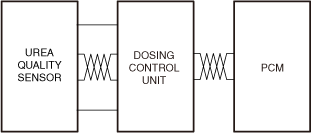

am6zzn00005620

Measurement method

• By operating the built-in heater, the urea quality sensor measures the change in the AdBlue^® temperature using the temperature sensor.

• The urea quality sensor detects the AdBlue^® concentration by the difference in thermal conductivity and also detects fluid other than AdBlue^®.

Fail-safe

• Not applicable.
