WRENCH INDICATION/WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2]

id0140z7320300

Purpose, Function

• The wrench indication/indicator light alerts the driver to an engine oil deterioration and engine oil level malfunction.

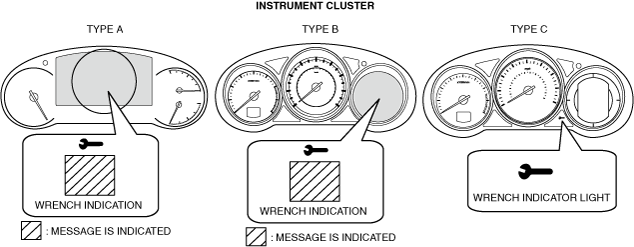

Construction

• The wrench indication is displayed in the multi-information display. (With multi-information display)

• The wrench indicator light is built into the instrument cluster. (Without multi-information display)

am6xun00004624

Operation

With multi-information display

• The message display conditions related to the wrench indication are as follows:

― Water level in sedimentor is certain level or more

― When the preset maintenance period approaches (See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)

― PCM determines engine oil replacement period reached. (See ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-D 2.2].)

• The PCM sends a message indication request to the instrument cluster via CAN communication.

Without multi-information display

• The wrench indicator light illumination/flash conditions are as follows:

Wrench indicator light illumination conditions

― Ignition switch ON (turns off after several second)

― When the preset maintenance period approaches (See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)

― PCM determines engine oil replacement period reached. (See ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-D 2.2].)

Wrench indicator light flash conditions

― Water level in sedimentor is certain level or more

• The PCM sends a wrench indicator light illumination or flash request to the instrument cluster via CAN communication.

Fail-safe

• Not applicable
