NEUTRAL SWITCH INSPECTION [SKYACTIV-D 2.2]

id0140z7800800

Neutral Switch No.1

Continuity inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the neutral switch No.1. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

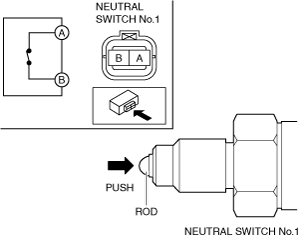

3.  Inspect for continuity between neutral switch No.1 terminal A and B.

ac5wzw00009825

•  If not as specified, replace the neutral switch No.1. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

Neutral Switch No.2 (Back-up Light Switch)

Continuity inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the back-up light switch. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

3.  Inspect for continuity between neutral switch No.2 terminal B and C.

am6zzw00017126

•  If not as specified, replace the back-up light switch. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
