PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7802400

Replacement Part

Set bolt

Quantity: 3

Location of use: PCM cover

Note

• If the PCM is replaced, perform the “PCM Replacement” procedure. (See PCM Replacement.)

PCM Replacement

Note

• The PCM replacement differs depending on whether As-built data is used or not during the PCM configuration.

Replacement procedure determination

Step

Action

Results

Action

1

Perform the PCM configuration and verify if the As-Built data input screen is displayed or not.

(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].)

Not displayed

Go to “Procedure for PCM replacement (pattern 1)”.

(See Procedure for PCM replacement (pattern 1).)

Displayed

Go to “Procedure for PCM replacement (pattern 2)”.

(See Procedure for PCM replacement (pattern 2).)

Step	Action	Results	Action
1	Perform the PCM configuration and verify if the As-Built data input screen is displayed or not. (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].)	Not displayed	Go to “Procedure for PCM replacement (pattern 1)”. (See Procedure for PCM replacement (pattern 1).)
Displayed	Go to “Procedure for PCM replacement (pattern 2)”. (See Procedure for PCM replacement (pattern 2).)

Procedure for PCM replacement (pattern 1)

Step

Action

Page

1

Continue to perform the configuration.

—

2

Clear the DTCs.

(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

3

Switch the ignition off.

—

4

Wait for 30 s or more.

—

5

Switch the ignition ON (engine off).

—

6

Perform the immobilizer system-related part programming.

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING.)

7

Perform the KOEO self test.

(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

8

Perform the KOER self test.

(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

9

Perform the Battery Condition Initial Setting (i-stop Setting) Procedure.

(See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

Step	Action	Page
1	Continue to perform the configuration.	—
2	Clear the DTCs.	(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)
3	Switch the ignition off.	—
4	Wait for 30 s or more.	—
5	Switch the ignition ON (engine off).	—
6	Perform the immobilizer system-related part programming.	(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING.)
7	Perform the KOEO self test.	(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)
8	Perform the KOER self test.	(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)
9	Perform the Battery Condition Initial Setting (i-stop Setting) Procedure.	(See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

Procedure for PCM replacement (pattern 2)

Step

Action

Page

1

Perform the configuration using the As-Built data.

(See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].)

2

Perform the PCM data reset procedure.

(See PCM DATA RESET [SKYACTIV-D 2.2].)

3

Clear the DTCs.

(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

4

Switch the ignition off.

—

5

Wait for 30 s or more.

—

6

Switch the ignition ON (engine off).

—

7

Perform the immobilizer system-related part programming.

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING.)

8

Perform the KOEO self test.

(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

9

Perform the KOER self test.

(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

10

Perform the Battery Condition Initial Setting (i-stop Setting) Procedure.

(See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

11

Perform compulsory DPF regeneration.

(See COMPULSORY DIESEL PARTICULATE FILTER REGENERATION [SKYACTIV-D 2.2].)

12

Perform the following procedure:

1.  Warm up the engine until the engine coolant temperature is 70 °C {158 °F} or more.

2.  Switch the ignition off.

3.  Store “Complete (delete record)” the M-MDS session.

4.  Remove the M-MDS.

5.  Start the engine.

6.  Leave for 3 min while idling.

7.  Continuously drive the vehicle for 30 s at a vehicle speed of 50 km/h {31 mph} or more.

―  When the warning light turns on or flashes, repeat the procedure from Procedure 5 (start the engine).

8.  After stopping the vehicle, leave it idling for 3 min without stopping the engine.

9.  Continuously drive the vehicle for 30 s at a vehicle speed of 50 km/h {31 mph} or more again.

―  When the warning light turns on or flashes, repeat the procedure from Procedure 5 (start the engine).

—

13

Verify that the learning value (PID: O2S11_CAL) for the A/F sensor is other than 0.

―  If the learning value (O2S11_CAL) for the A/F sensor is 0, repeat the procedure from Procedure 5 in Step 13 (start the engine).

—

14

Clear the DTCs.

(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

15

Replace the engine oil.

Note

•  Because the PCM is new, it is not necessary to perform the engine oil data reset procedure.

(See ENGINE OIL REPLACEMENT [SKYACTIV-D 2.2].)

Step	Action	Page
1	Perform the configuration using the As-Built data.	(See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].)
2	Perform the PCM data reset procedure.	(See PCM DATA RESET [SKYACTIV-D 2.2].)
3	Clear the DTCs.	(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)
4	Switch the ignition off.	—
5	Wait for 30 s or more.	—
6	Switch the ignition ON (engine off).	—
7	Perform the immobilizer system-related part programming.	(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING.)
8	Perform the KOEO self test.	(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)
9	Perform the KOER self test.	(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)
10	Perform the Battery Condition Initial Setting (i-stop Setting) Procedure.	(See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)
11	Perform compulsory DPF regeneration.	(See COMPULSORY DIESEL PARTICULATE FILTER REGENERATION [SKYACTIV-D 2.2].)
12	Perform the following procedure: 1. Warm up the engine until the engine coolant temperature is 70 °C {158 °F} or more. 2. Switch the ignition off. 3. Store “Complete (delete record)” the M-MDS session. 4. Remove the M-MDS. 5. Start the engine. 6. Leave for 3 min while idling. 7. Continuously drive the vehicle for 30 s at a vehicle speed of 50 km/h {31 mph} or more. ― When the warning light turns on or flashes, repeat the procedure from Procedure 5 (start the engine). 8. After stopping the vehicle, leave it idling for 3 min without stopping the engine. 9. Continuously drive the vehicle for 30 s at a vehicle speed of 50 km/h {31 mph} or more again. ― When the warning light turns on or flashes, repeat the procedure from Procedure 5 (start the engine).	—
13	Verify that the learning value (PID: O2S11_CAL) for the A/F sensor is other than 0. ― If the learning value (O2S11_CAL) for the A/F sensor is 0, repeat the procedure from Procedure 5 in Step 13 (start the engine).	—
14	Clear the DTCs.	(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)
15	Replace the engine oil. Note • Because the PCM is new, it is not necessary to perform the engine oil data reset procedure.	(See ENGINE OIL REPLACEMENT [SKYACTIV-D 2.2].)

PCM Removal/Installation

Without Set Bolt

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Disconnect the PCM connectors. (See PCM Connector Connection Note.)

ac5wzw00004473

3. Remove clip A from the PCM bracket.

ac5wzw00004474

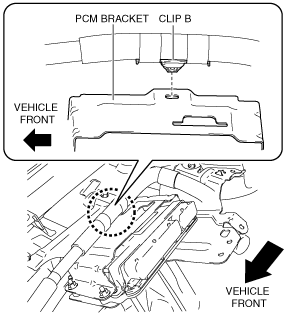

4. Remove clip B from the PCM bracket.

ac5wzw00004475

5. Remove the nuts from the PCM bracket.

ac5wzw00005497

6. Remove the PCM bracket. (See PCM Bracket Installation Note.)

ac5wzw00005498

7. Remove the PCM.

8. Install in the reverse order of removal.

9. When replacing the PCM on the vehicles, perform the “PCM Replacement”. (See PCM Replacement.)

With Set Bolt

am6zzw00008677

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the PCM cover. (See Set Bolt Removal Note.) (See Set Bolt Installation Note.) (See PCM Cover Installation Note.)

am6zzw00013533

3. Disconnect the PCM connectors. (See PCM Connector Connection Note.)

am6zzw00008678

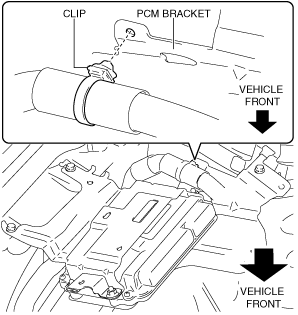

4. Remove the clip from the PCM bracket.

am6zzw00008675

5. Remove the nut from the PCM bracket.

am6zzw00008679

6. Remove the PCM bracket. (See PCM Bracket Installation Note.)

am6zzw00008612

7. Remove the PCM.

8. Install in the reverse order of removal.

9. When replacing the PCM on the vehicles, perform the “PCM Replacement”. (See PCM Replacement.)

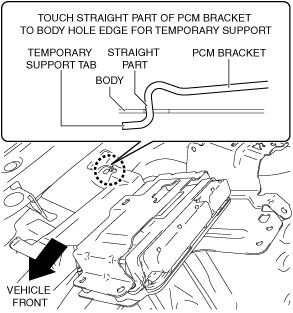

PCM Bracket Installation Note

1. Install the PCM bracket as shown in the figure.

ac5wzw00005502

Set Bolt Removal Note

1. Using a chisel and a hammer, cut a groove on the head of the set bolt so that a screwdriver can be inserted.

2. Loose the set bolt using an impact screwdriver or pliers.

am6zzw00010942

Set Bolt Installation Note

1. Install a new set bolt and tighten it until the neck of the bolt is cut.

am6zzw00010943

PCM Cover Installation Note

1. Install the PCM cover as shown in the figure.

am6zzw00008680

2. Temporarily tighten the four bolts, then completely tighten them.

am6zzw00013535

PCM Connector Connection Note

Caution

• Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.

• If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

ac5wzw00004477

1. Set the PCM connector to the position shown in the figure.

ac5wzw00004478

2. Align the PCM connector straight against the connection surface.

aaxjjw00010952

3. Insert the PCM connector straight and press it in until the lever moves up naturally. (Front harness-side connector)

ac5wzw00004479

4. Press the PCM connector lever until a click sound is heard.

ac5wzw00005917
