INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7806300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

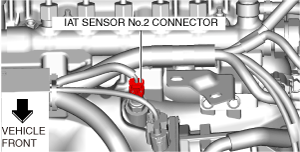

3.  Disconnect the IAT sensor No.2 connector.

ac8wzw00002800

4.  Remove the IAT sensor No.2.

ac8wzw00002801

5.  Install in the reverse order of removal.
