ENGINE TECHNICAL DATA [SKYACTIV-D 2.2]

id0150f6800100

Item	Specification
Difference between target idle speed and the engine speed	Within 50 rpm
Target idle speed (reference)	[ATX] Normal: 800 rpm DPF auto regeneration: 780—875 rpm
OCV coil resistance	6.9—7.9 ohms [20 °C {68 °F}]
Standard cylinder head bolt length	L: 169.2—169.8 mm {6.662—6.685 in}
Maximum cylinder head bolt length	L: 170.5 mm {6.713 in}
Front oil seal press on amount	0—0.5 mm {0—0.019 in} from edge surface of engine front cover
Rear oil seal press on amount	0—0.5 mm {0—0.019 in} from edge surface of cylinder block
Engine oil capacity (approx. quantity)	Oil replacement: 4.8 L {5.1 US qt, 4.2 Imp qt} Oil and oil filter replacement: 5.1 L {5.4 US qt, 4.5 Imp qt} Total (dry engine): 6.0 L {6.3 US qt, 5.3 Imp qt}
Oil pressure (reference value) [oil temperature: 70—80 °C {158—176 °F}, coolant temperature: 70—80 °C {158—176 °F}]	Lo: 140—190 kPa {1.43—1.93 kgf/cm2, 20.4—27.5 psi} [1,500 rpm] Hi: 310—450 kPa {3.17—4.58 kgf/cm2, 45.0—65.2 psi} [3,500 rpm]
Engine coolant capacity (approx. quantity)	9.8 L {10 US qt, 8.6 Imp qt}
Cooling system cap valve opening pressure	93.2—122.6 kPa {0.951—1.250 kgf/cm2, 13.6—17.7 psi}
Thermostat initial-opening temperature	80—84 °C {176—183 °F}
Thermostat full-open temperature	95 °C {203 °F}
Thermostat full-open lift	8.5 mm {0.33 in} or more
Cooling fan motor No.1, No.2 standard current	15—21 A [12 V]
Glow plug resistance (specification)	Approx. 0.3 ohms [20 °C {68 °F}]
Compressor bypass solenoid valve resistance (specification)	30—34 ohms [20 °C {68 °F}]
Variable turbine geometry turbocharger actuator resistance (specification)	2.2—2.9 ohms [25 °C {77 °F}]
Regulating solenoid valve resistance (specification)	2.19—2.59 ohms [25 °C {77 °F}]
Wastegate solenoid valve resistance (specification)	9.8—11.2 ohms [20 °C {68 °F}]
Fuel pressure relief valve resistance (specification)	0.96—1.16 ohms [20 °C {68 °F}]
Suction control valve resistance (specification)	Approx. 2.1 ohms [20 °C {68 °F}]
Fuel warmer resistance (specification)	Approx. 0.5—2.0 ohms
EGR valve resistance (specification)	0.3—100 ohms [20 °C {68 °F}]
EGR cooler bypass valve resistance (specification)	Other than infinity
Intake shutter valve resistance (specification)	0.3—100 ohms [20 °C {68 °F}]
Urea tank heater resistance	1.2—2.66 ohms [25 °C {77 °F}]
Urea hose heater resistance	2WD (WGN): 2.37—2.89 ohms 2WD (4SD): 2.35—2.87 ohms 4WD: 2.31—2.81 ohms
Urea injector resistance	11—13 ohms [20 °C {68 °F}]
Urea pump (siphoning side) resistance (specification)	3.5—4.7 ohms
Urea pump (pumping side) resistance (specification)	3.5—4.7 ohms
Battery parasitic draw (When the ignition is off, all doors and the bonnet are closed.)	40—65 mA
Generator standard voltage [IG-ON]	Terminal 1A: B+ Terminal 2A: Approx. 1 V or less Terminal 2B: Approx. 0 V
Generator standard voltage [Idle, 20 °C {68 °F}]	Terminal 1A: 13—15 V Terminal 2A: Approx. 3—8 V Terminal 2B: Turn the electrical loads (such as headlights, blower motor, rear window defogger, brake lights, etc.) on and verify that the voltage reading increases.
Generator rotor resistance (between slip rings) [20 °C {68 °F}]	1.8—2.1 ohms
Generator brush length	Standard: 22.5 mm {0.886 in} Minimum: 5.0 mm {0.20 in}
Generator brush spring force	Standard: 4.1—5.3 N {0.42—0.54 kgf, 1.0—1.1 lbf} Minimum: 1.7 N {0.17 kgf, 0.38 lbf}
Starter no-load test voltage	11 V
Starter no-load test current	90 A or less
A/F sensor heater resistance	1—10 ohms [Normal temperature]
EGR valve position sensor voltage [IG-ON] (specification)	1.05—1.35 V
Blow-by heater resistance	6—10 ohms [Normal temperature]

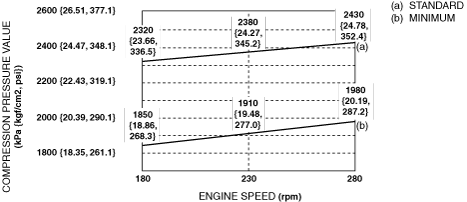

Compression pressure

ac8wzw00002479

Standard: Refer to the graph.

Minimum: Refer to the graph.

Maximum difference between cylinders: 147 kPa {1.50 kgf/cm², 21.3 psi}[180 rpm]

Generator generated current (reference value) [Ambient temperature: 20 °C {68 °F}, Engine hot]

Cylinder number

ac5wzw00006190
