ON-BOARD DIAGNOSTIC SYSTEM [INSTRUMENT CLUSTER (TPMS)]


id020210011100

Note
•  Only the direct Tire Pressure Monitoring System (TPMS)-related information is described in this section.

Outline

•  The on-board diagnostic system consists of the following functions:
―  A malfunction detection function that detects abnormalities in input/output signals when the ignition switch is at the ON position.
―  A PID/data monitor function that reads out specified input/output signals.
•  The data link connector 2 (DLC-2), which groups together all the connectors used for malfunction diagnosis into a single location, has been adopted, thereby improving serviceability. Diagnosis is performed by connecting the Mazda Modular Diagnostic System (M-MDS) to the DLC-2.
•  In addition to DTC read-out, the Mazda Modular Diagnostic System (M-MDS) has following functions:
―  PID/data monitor access
―  DTC clear using the display screen of the diagnostic tester

Block diagram

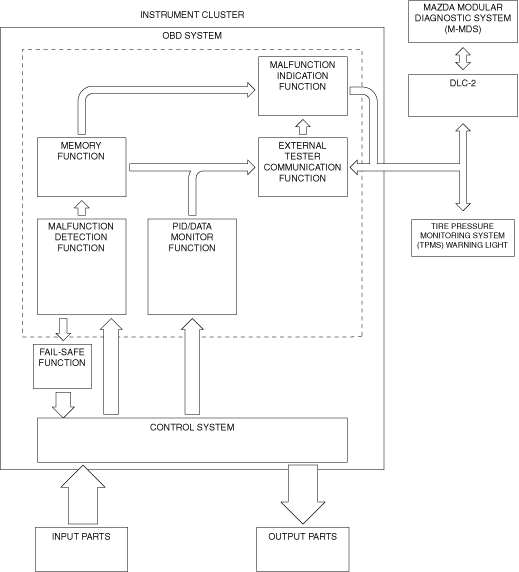

amxzzn00000739

Function


Malfunction detection function

•  The malfunction detection function detects malfunctions in the input/output signal system of the instrument cluster when the ignition switched ON or driving the vehicle.


Malfunction display function

•  When the malfunction detection function detects a malfunction, the Tire Pressure Monitoring System (TPMS) warning light illuminates to alert the driver.
•  Using the external tester communication function, DTCs can be output to the DLC-2 via the CAN line. At the same time, malfunction detection results are sent to the memory function and fail-safe function.


Memory function

•  The memory function stores DTCs of malfunctions in input/output signal systems. With this function, once a DTC is stored it is not cleared after the ignition switch has been switched OFF, even if the malfunctioning signal system has returned to normal.
•  Since the instrument cluster has a built-in non-volatile memory, DTCs are not cleared even if the battery is removed. Therefore, it is necessary to clear the memory after performing repairs. Refer to the Workshop Manual for the DTC clearing procedure.


DTC table

×: Applicable
—: Not applicable

DTC

Tire Pressure Monitoring System (TPMS) warning light

Description

Fail-safe

Drive cycle

Self test type*1

Memory function

C0077:00
Illuminated
Low tire pressure
C, D
×
C2011:49
Illuminated
Signal error from wheel unit No.1
C, D
×
C2011:87
Illuminated
Communication error to wheel unit No.1
C, D
×
C2012:49
Illuminated
Signal error from wheel unit No.2
C, D
×
C2012:87
Illuminated
Communication error to wheel unit No.2
C, D
×
C2013:49
Illuminated
Signal error from wheel unit No.3
C, D
×
C2013:87
Illuminated
Communication error to wheel unit No.3
C, D
×
C2014:49
Illuminated
Signal error from wheel unit No.4
C, D
×
C2014:87
Illuminated
Communication error to wheel unit No.4
C, D
×
U0127:00
Illuminated
Communication error to start stop unit
C, D
×
U0300:00
Illuminated
Instrument cluster configuration error
C, D
×
U3000:42
Illuminated
Instrument cluster internal malfunction
C, D
×

*1  :C: CMDTC self test, D: ODDTC self test


Status byte for DTC

•  The status byte is the two-digit code (two digits after hyphen (-)) after the seven-digit DTC.
am2zzn00002656
•  The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.
•  The status byte can be read by performing a CMDTC self test using the Mazda Modular Diagnostic System (M-MDS).
•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.


Fail-safe function

•  When the malfunction detection function determines a malfunction, the Tire Pressure Monitoring System (TPMS) warning light illuminates to alert the driver. At this time, the fail-safe function controls as indicated in the fail-safe function table.

Fail-safe function table

DTC

Tire Pressure Monitoring System (TPMS) control

C0077:00
Not applicable
C2011:49
Not applicable
C2011:87
Not applicable
C2012:49
Not applicable
C2012:87
Not applicable
C2013:49
Not applicable
C2013:87
Not applicable
C2014:49
Not applicable
C2014:87
Not applicable
U0127:00
Not applicable
U0300:00
Not applicable
U3000:42
Not applicable


Snapshot data

•  The snapshot data stores the currently detected DTC data.

Snapshot data table

—: Not applicable

Snapshot data item

Unit

Data contents

Data read/use method

Corresponding data monitor items

AAT
°C
°F
Ambient temperature
APP_STATUS
Accelerator Pedal Off/Under20%/Over20%/FAIL
Accelerator pedal position status
CFG_STATUS
Config Complete/Not Configured/Config Error
Instrument cluster configuration status
ECT_STATUS
Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL
Engine coolant temperature status
IC_VPWR
V
Instrument cluster power supply voltage
When DTC is detected, instrument cluster displays power supply voltage value of instrument cluster in Mazda Modular Diagnostic System (M-MDS).
VPWR
IG-ON_TIMER
hh:mm:ss*1
Elapsed time since ignition was switched ON (engine off or on)
Note
•  The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).
When DTC is detected, instrument cluster displays elapsed time since ignition was switched ON (engine off or on) in Mazda Modular Diagnostic System (M-MDS).
PWR_MODE_KEY
Key Out/Key Recently Out/Key Approved (Position 0)/Post Accessory (Position 0)/Accessory (Position 1)/Post Ignition (Position 1)/ignition On (Position 2)/Running (Position 2)/Running - Starting In Progr
Ignition switch status
When DTC is detected, instrument cluster displays ignition switch status in Mazda Modular Diagnostic System (M-MDS).
RPM_STATUS
Engine Stop/Under1500rpm/Over1500rpm/FAIL
Engine speed status
When DTC is detected, instrument cluster displays engine speed in Mazda Modular Diagnostic System (M-MDS).
TACHOMTR
SHIFT_STATUS
P/N/D/R/FAIL
Selector lever position (ATX)/shift lever position (MTX) status
When DTC is detected, instrument cluster displays selector lever position (ATX)/shift lever position (MTX) in Mazda Modular Diagnostic System (M-MDS).
TOTAL_DIST
km
ft, mi
Accumulated total traveled distance from completion of vehicle until instrument cluster detects DTC (Odometer value in instrument cluster)
The total traveled distance from which the instrument cluster detects DTCs to the present can be calculated by performing the following procedure.
1.  Verify the odometer value in the instrument cluster.
2.  Verify the snapshot data item TOTAL_DIST.
3.  Subtract 2 from 1.
TOTAL_TIME
hh:mm:ss*1
Accumulated total elapsed time since vehicle completion until instrument cluster detects a DTC
Note
•  When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.
The elapsed time from which the instrument cluster detects DTCs to the present can be calculated by performing the following procedure.
1.  Verify the instrument cluster PID item TOTAL_TIME.
2.  Verify the snapshot data item TOTAL_TIME.
3.  Subtract 2 from 1.
TOTAL_TIME
VPWR
V
Instrument cluster power supply voltage
VPWR
VSPD_STATUS
Stop/0-10km/h/Over10km/h/FAIL
Vehicle speed status
When DTC is detected, instrument cluster displays vehicle speed in Mazda Modular Diagnostic System (M-MDS).
VSS
KPH
MPH
Vehicle speed
SPEEDOMTR
WU1_P
KPa
MPa
Tire pressure (wheel unit No.1)
WU1_P
WU1_T
°C
°F
Tire air temperature (wheel unit No.1)
WU1_T
WU2_P
KPa
MPa
Tire pressure (wheel unit No.2)
WU2_P
WU2_T
°C
°F
Tire air temperature (wheel unit No.2)
WU2_T
WU3_P
KPa
MPa
Tire pressure (wheel unit No.3)
WU3_P
WU3_T
°C
°F
Tire air temperature (wheel unit No.3)
WU3_T
WU4_P
KPa
MPa
Tire pressure (wheel unit No.4)
WU4_P
WU4_T
°C
°F
Tire air temperature (wheel unit No.4)
WU4_T

*1  :The seconds may be indicated after the decimal point.


PID/data monitor function

•  The PID/data monitor function is used for optionally selecting input/output signal monitor items preset in the instrument cluster and reading them out in real-time.

Monitor item

Unit/operation

Definition

TPRE_LMOD
INACTIVE/ACTIVE
This PID indicates the completion of the wheel unit ID registration.
WU1_ID
This PID indicates registered wheel unit ID (wheel unit No.1).
WU1_ID
This PID indicates registered wheel unit ID (wheel unit No.1).
WU2_ID
This PID indicates registered wheel unit ID (wheel unit No.2).
WU3_ID
This PID indicates registered wheel unit ID (wheel unit No.3).
WU4_ID
This PID indicates registered wheel unit ID (wheel unit No.4).
WU1_ERR_P
Normal/Error
This PID indicates tire pressure status (wheel unit No.1).
WU2_ERR_P
Normal/Error
This PID indicates tire pressure status (wheel unit No.2).
WU3_ERR_P
Normal/Error
This PID indicates tire pressure status (wheel unit No.3).
WU4_ERR_P
Normal/Error
This PID indicates tire pressure status (wheel unit No.4).
WU1_ERR_T
Normal/Error
This PID indicates tire air temperature status (wheel unit No.1).
WU2_ERR_T
Normal/Error
This PID indicates tire air temperature status (wheel unit No.2).
WU3_ERR_T
Normal/Error
This PID indicates tire air temperature status (wheel unit No.3).
WU4_ERR_T
Normal/Error
This PID indicates tire air temperature status (wheel unit No.4).
WU1_P
KPa, MPa
This PID indicates tire pressure (wheel unit No.1).
WU2_P
KPa, MPa
This PID indicates tire pressure (wheel unit No.2).
WU3_P
KPa, MPa
This PID indicates tire pressure (wheel unit No.3).
WU4_P
KPa, MPa
This PID indicates tire pressure (wheel unit No.4).
WU1_T
°C, °F
This PID indicates tire air temperature (wheel unit No.1).
WU2_T
°C, °F
This PID indicates tire air temperature (wheel unit No.2).
WU3_T
°C, °F
This PID indicates tire air temperature (wheel unit No.3).
WU4_T
°C, °F
This PID indicates tire air temperature (wheel unit No.4).
WU1_VPWR
Normal/Error
This PID indicates supply voltage (wheel unit No.1).
WU2_VPWR
Normal/Error
This PID indicates supply voltage (wheel unit No.2).
WU3_VPWR
Normal/Error
This PID indicates supply voltage (wheel unit No.3).
WU4_VPWR
Normal/Error
This PID indicates supply voltage (wheel unit No.4).


External tester communication function

•  The external tester communication function enables communication of diagnostic data (DTC read-outs, input/output signal read-outs) between the instrument cluster and an external tester.
•  By connecting the Mazda modular diagnostic system (M-MDS) to the DLC-2, diagnostic data can be sent and received between the Mazda modular diagnostic system (M-MDS) and the instrument cluster via CAN lines.
•  The instrument cluster receives the command signals of the malfunction detection function and PID/data monitor function from the Mazda modular diagnostic system (M-MDS), and sends DTCs and data regarding the operating status of each input/output part to the Mazda modular diagnostic system (M-MDS).

Diagnostic function name

Signal received

Signal sent

Malfunction detection function
DTC verification signal
DTC(s)
PID/data monitor function
Command signal to read selected monitor item
Monitored data for requested monitor item
