REAR STABILIZER REMOVAL [2WD]

id0214008041a1

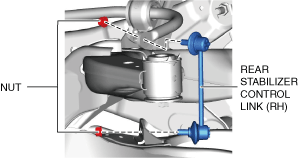

1.  Remove the rear stabilizer control link (RH).

am6xuw00012615

2.  Remove the rear coil spring (RH). (See REAR COIL SPRING REMOVAL/INSTALLATION.)

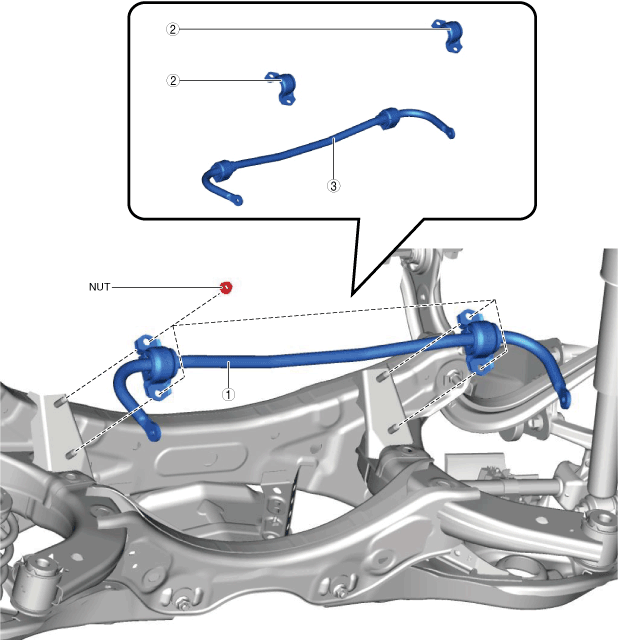

3.  Remove in the order indicated in the table.

am6xuw00012823

1	Rear stabilizer component (See Rear Stabilizer Component Removal Note.)
2	Rear stabilizer bracket (See Rear Stabilizer Bracket Removal Note.)
3	Rear stabilizer

Rear Stabilizer Component Removal Note

1.  Remove the rear stabilizer component as shown in the figure.

am6xuw00011475

Rear Stabilizer Bracket Removal Note

1.  Secure the rear stabilizer bracket flange using a vise.

ac5wzw00004596
