WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD]

id031200800401

Caution

•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Switch the ignition ON (engine off).

2.  Release the electric parking brake.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

6.  Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing.

am6xuw00011521

7.  Remove the rear brake caliper component installation bolts.

am6xuw00011522

8.  Remove the rear brake caliper component and suspend it out of the way using a cable.

ac9uuw00008034

9.  Remove the rear disc plate.

am6xuw00011523

10.  Remove in the order indicated in the table.

11.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

12.  When the hub support, hub support bushing (front), or hub support bushing (rear) is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

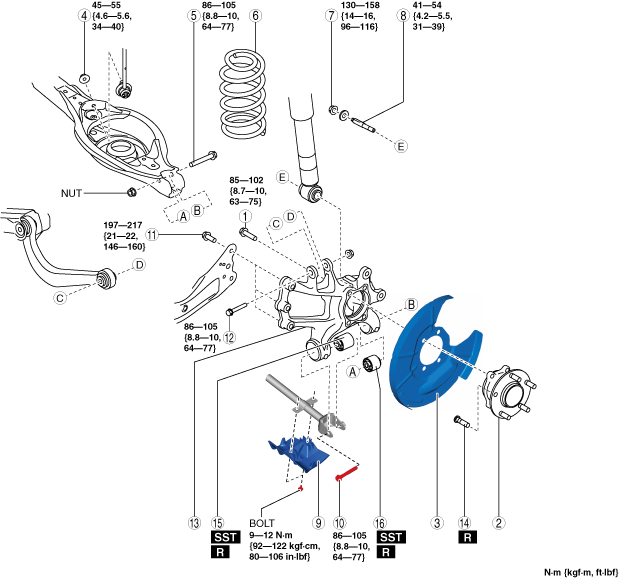

am6xuw00011524

1	Bolt (wheel hub)
2	Wheel hub
3	Dust cover
4	Rear stabilizer control link lower side nut
5	Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note.)
6	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
7	Rear shock absorber lower nut
8	Stud bolt
9	Protector
10	Rear lateral link outer bolt
11	Rear trailing link installation bolt
12	Bolt (rear upper arm outer side)
13	Hub support
14	Wheel hub bolt (See Wheel Hub Bolt Removal Note.) (See Wheel Hub Bolt Installation Note.)
15	Hub support bushing (front) (See Hub Support Bushing (Front) Removal Note.) (See Hub Support Bushing (Front) Installation Note.)
16	Hub support bushing (rear) (See Hub Support Bushing (Rear) Removal Note.) (See Hub Support Bushing (Rear) Installation Note.)

Rear Lower Arm Outer Bolt Removal Note

1.  Support the rear lower arm using a jack.

ac5uuw00008478

2.  Remove the rear lower arm outer bolt.

Wheel Hub Bolt Removal Note

Note

•  Remove the wheel hub bolt only if there is any malfunction.

1.  Remove the wheel hub bolt using a press.

am6xuw00011525

Hub Support Bushing (Front) Removal Note

1.  Mark the hub support as shown in the figure.

am6xuw00011526

2.  Press the rear hub support bushing (front) out using the SSTs.

am6xuw00011527

Hub Support Bushing (Rear) Removal Note

1.  Mark the hub support as shown in the figure.

am6xuw00011528

2.  Press the rear hub support bushing (rear) out using the SSTs.

am6xuw00011529

Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following procedures.

(1)  Temporarily tighten the bolts and nuts with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the bolts and nuts to the specified torque.

Hub Support Bushing (Rear) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

ac5wzw00002568

2.  Install a new hub support bushing (rear) using the SSTs.

am6xuw00011530

Hub Support Bushing (Front) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

ac5wzw00002570

2.  Install a new hub support bushing (front) using the SSTs.

am6xuw00011531

Wheel Hub Bolt Installation Note

1.  Install the new wheel hub bolt using a press.

am6xuw00011532
