FRONT BRAKE DISC PAD REMOVAL/INSTALLATION

id041100000200

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

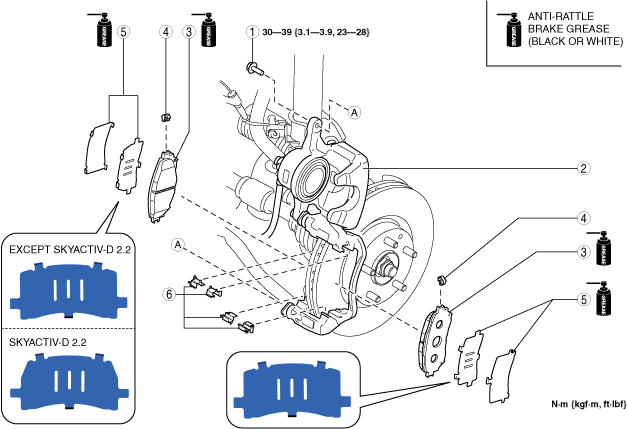

am6zzw00018283

1	Bolt
2	Caliper (See Caliper Installation Note.)
3	Disc pad
4	Wear indicator
5	Shim
6	Guide plate

Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

am6zzw00009109

3.  Install the caliper.
