FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION
id041100000500
1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

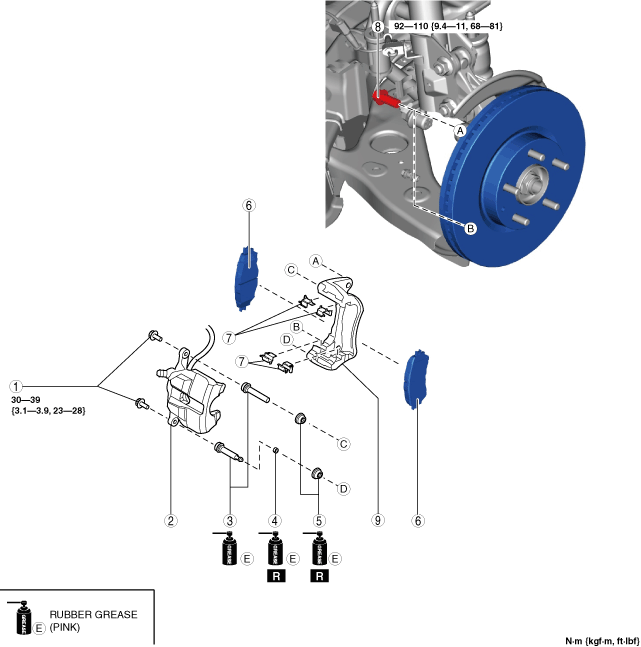

am6xuw00009375
|
|
1
|
Bolt
|
|
2
|
Front brake caliper
|
|
3
|
Slide pin
|
|
4
|
Bushing
|
|
5
|
Dust boot
|
|
6
|
Disc pad component
|
|
7
|
Guide plate
|
|
8
|
Bolt
|
|
9
|
Mounting support
|
Front Brake Caliper Removal Note
1. Remove the front brake caliper and suspend it in a place out of the way using a cable.
