REAR BRAKE DISC PAD REMOVAL/INSTALLATION

id041100001000

Note

•  When in maintenance mode, the clearance between the disc pad and the disc plate expands.

•  When the maintenance mode is completed, perform the electric parking brake automatic adjustment.

•  With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

4.  Disconnect the electric parking brake motor gear unit connector.

am6xuw00009380

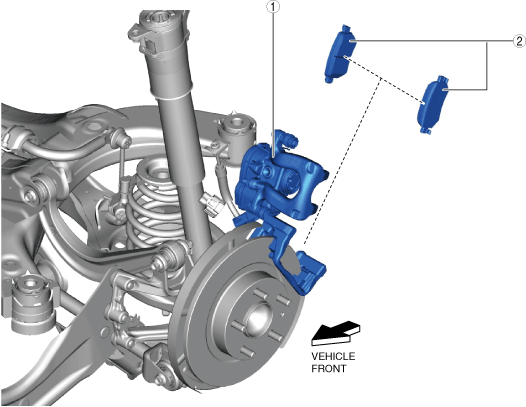

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  End the maintenance mode. (See MAINTENANCE MODE.)

8.  After installation, pump the brake pedal a few times and inspect the following:

―  Disc pad projection does not contact piston and caliper

―  Brake drag

am6xuw00009381

1	Rear brake caliper (See Caliper Removal Note.)
2	Disc pad (See Disc Pad, Bolt Installation Note.)

Caliper Removal Note

1.  Remove the bolt shown in the figure and lift up the caliper.

am3zzw00019752

Disc Pad, Bolt Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

Caution

•  If the piston is pushed into the caliper while rotating the piston, the caliper internal parts could be damaged. Be careful not to rotate the piston when pushing the piston into the caliper.

am3zzw00019753

3.  Install the disc pads to the mounting support.

4.  Return the caliper to the original position and install the bolt.

am3zzw00019754
