VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION))]

id0411008016y4

Between Intake Manifold and Vacuum Pump

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

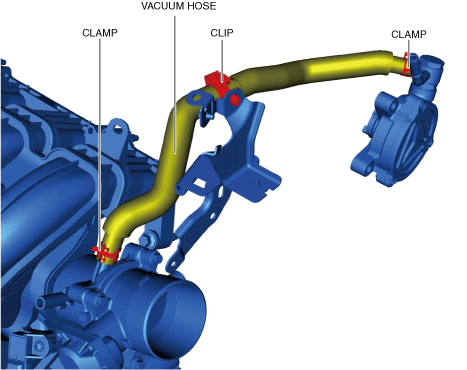

2.  Disconnect the vacuum hose from the clip.

am6xuw00009389

3.  Pinch open the clamps using pliers and disconnect the vacuum hose.

4.  Install in the reverse order of removal. (See Vacuum hose (between intake manifold and vacuum pump) installation note.)

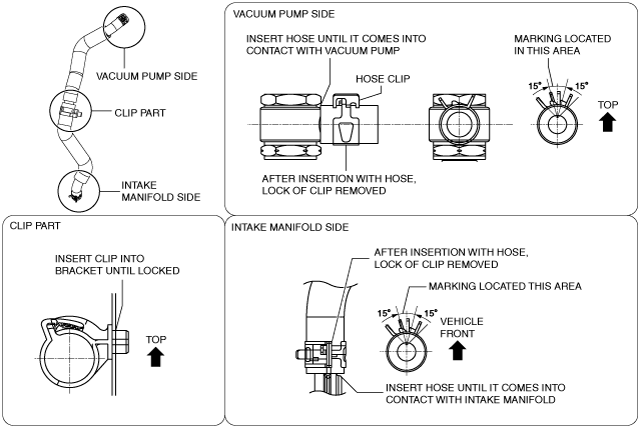

Vacuum hose (between intake manifold and vacuum pump) installation note

1.  Install the vacuum hose as shown in the figure.

am6xuw00009390

Between Vacuum Pump and Power Brake Unit

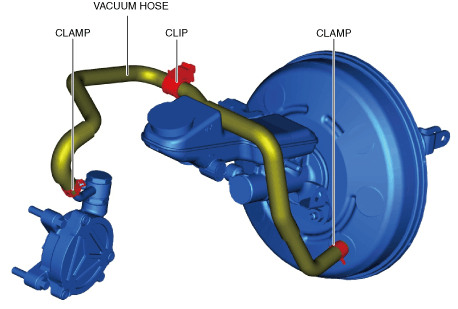

1.  Disconnect the vacuum hose from the clip.

am6xuw00009391

2.  Pinch open the clamps using pliers and disconnect the vacuum hose.

3.  Install in the reverse order of removal. (See Vacuum hose (between vacuum pump and power brake unit) installation note.)

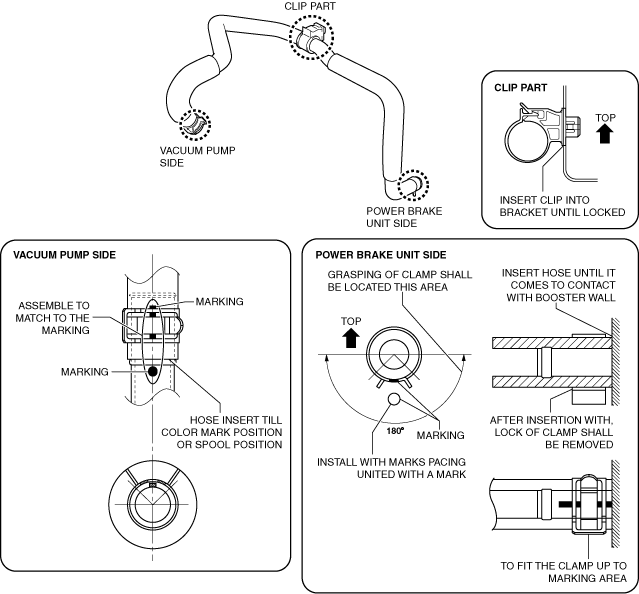

Vacuum hose (between vacuum pump and power brake unit) installation note

1.  Install the vacuum hose as shown in the figure.

am6xuw00009392
