DSC HU/CM

id041500103300

Outline

• A high reliability, reduced size and weight DSC HU/CM, integrating both the DSC HU and the DSC CM, has been adopted.

am6xun00004474

DSC HU Part Purpose/Function

• According to DSC CM signals, the DSC HU controls (on/off) each solenoid valve and the pump motor, adjusts fluid pressure in each caliper piston, and actuates each function (ABS, EBD, TCS, DSC, brake assist control, Hill Launch Assist (HLA), secondary collision reduction, and AUTOHOLD) of the DSC system.

DSC HU Part Construction

• The DSC HU mainly consists of the inlet/outlet solenoid valves, pump motor (pump) and linear control solenoid valves.

Function of main component parts

Part name	Function
Inlet solenoid valve	• Adjusts the fluid pressure in each brake system according to DSC HU/CM signals.
Outlet solenoid valve	• Adjusts the fluid pressure in each brake system according to DSC HU/CM signals.
Linear control solenoid valve	• Switches the brake hydraulic circuits during and according to normal braking, ABS and EBD control, TCS control and DSC control.
Reservoir	• Closes the hydraulic circuit between the master cylinder and reservoir if the brake pedal is depressed. • Temporarily stores brake fluid from the caliper piston when pressure reduces during ABS control and EBD control. • Opens the hydraulic circuit between the master cylinder and reservoir when pressure increases during TCS control and DSC control.
Pump	• Returns the brake fluid stored in the reservoir to the master cylinder during ABS control and DSC control. • Increases brake fluid pressure and sends brake fluid to each caliper piston during TCS control and DSC control.
Pump motor	• Operates the pump according to DSC HU/CM signals.

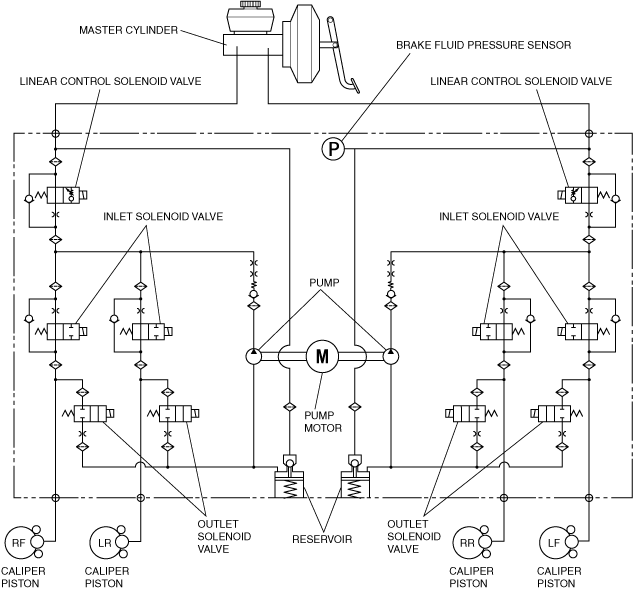

Hydraulic circuit diagram

am6zzn00001805

Operation

During normal braking

• During normal braking, the solenoid valves are not energized and all of them are off. When the brake pedal is depressed, brake fluid pressure is transmitted from the master cylinder, through the inlet solenoid valves, and then to the caliper piston.

Solenoid valve operation table

Linear control solenoid valve		Inlet solenoid valve				Outlet solenoid valve				Pump motor, pump
LF—RR	RF—LR	LF	RF	LR	RR	LF	RF	LR	RR	Pump motor, pump
OFF (open)		OFF (open)				OFF (closed)				Stopped

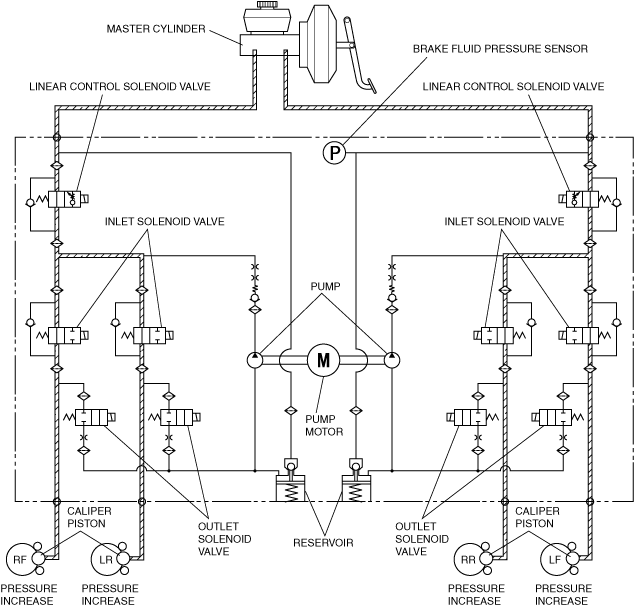

Hydraulic circuit diagram

am6zzn00001806

During ABS and EBD control

• During ABS and EBD control, when wheel lock-up is about to occur, the linear control solenoid valves are not energized, and the inlet and outlet solenoid valves are energized and controlled in three pressure modes (increase, reduction or maintain), thereby adjusting brake fluid pressure. Brake fluid during pressure reduction is temporarily stored in the reservoir and afterwards the pump motor operates the pump to return the fluid to the master cylinder. (The following figure shows these conditions: right front wheel pressure increased, left front wheel pressure maintained, and both rear wheels pressure reduction.)

Solenoid valve operation table

	Linear control solenoid valve		Inlet solenoid valve				Outlet solenoid valve				Pump motor, pump
	LF—RR	RF—LR	LF	RF	LR	RR	LF	RF	LR	RR	Pump motor, pump
During pressure increase mode	OFF (open)		OFF (open)				OFF (closed)				Stopped
During pressure maintain mode	OFF (open)		ON (closed)				OFF (closed)				Stopped
During pressure reduction mode	OFF (open)		ON (closed)				ON (open)				Operating

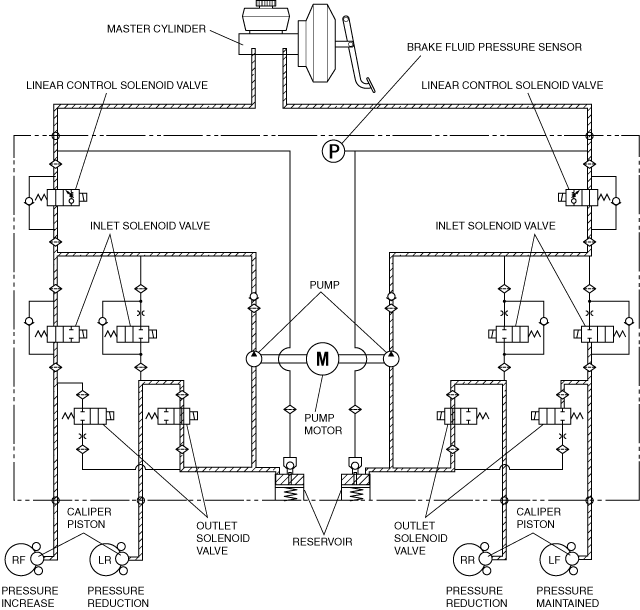

Hydraulic circuit diagram

am6zzn00001807

During TCS control

• When a driving wheel spin is determined, the linear control solenoid valves are energized, switching the hydraulic circuits. At the same time, the pump motor is actuated to operate the pump, thereby increasing pressure by supplying brake fluid pressure to the front caliper piston of the slipping driving wheel.

• After a pressure increase, brake fluid pressure is adjusted using the three pressure modes (reduction, maintain, increase) so that the target wheel speed is obtained. (The following figure shows a control of right front wheel spin (during pressure increase mode).)

Solenoid valve operation table

	Linear control solenoid valve		Inlet solenoid valve				Outlet solenoid valve				Pump motor, pump
	LF—RR	RF—LR	LF	RF	LR	RR	LF	RF	LR	RR	Pump motor, pump
During pressure increase mode	OFF (open)	ON (adjusting pressure)	ON (closed)	OFF (open)	ON (closed)		OFF (closed)				Operating
During pressure maintain mode	OFF (open)	ON (adjusting pressure)	ON (closed)	OFF (open)	ON (closed)		OFF (closed)				Operating
During pressure reduction mode	OFF (open)	ON (adjusting pressure)	ON (closed)	OFF (open)	ON (closed)		OFF (closed)				Operating

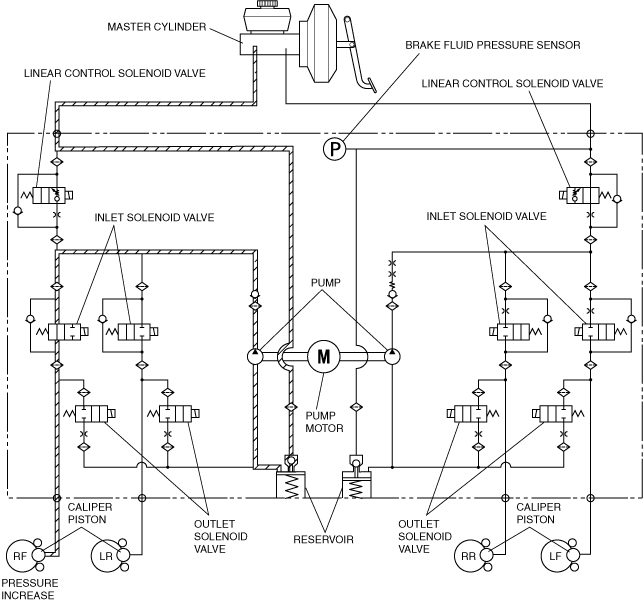

Hydraulic circuit diagram

am6zzn00001808

During DSC control (to suppress oversteer tendency)

• When a large oversteer tendency is determined, the linear control solenoid valves are energized, switching the hydraulic circuits. At the same time, the pump motor is actuated to operate the pump, thereby increasing pressure by supplying brake fluid pressure to the outer front caliper piston. Also at this time, the inlet solenoid valve of the inner rear wheel is energized and the hydraulic circuit of this wheel is closed.

Solenoid valve operation table

	Linear control solenoid valve		Inlet solenoid valve				Outlet solenoid valve				Pump motor, pump
	LF—RR	RF—LR	LF	RF	LR	RR	LF	RF	LR	RR	Pump motor, pump
During pressure increase mode	OFF (open)	ON (closed)	OFF (open)	OFF (open)	ON (closed)	OFF (open)	OFF (closed)	OFF (closed)	ON (open)	OFF (closed)	Operating
During pressure maintain mode	OFF (open)	ON (closed)	OFF (open)	ON (closed)	ON (closed)	OFF (open)	OFF (closed)	OFF (closed)	ON (open)	OFF (closed)	Operating
During pressure reduction mode	OFF (open)	ON (closed)	OFF (open)	ON (closed)	ON (closed)	OFF (open)	OFF (closed)	ON (open)	ON (open)	OFF (closed)	Operating

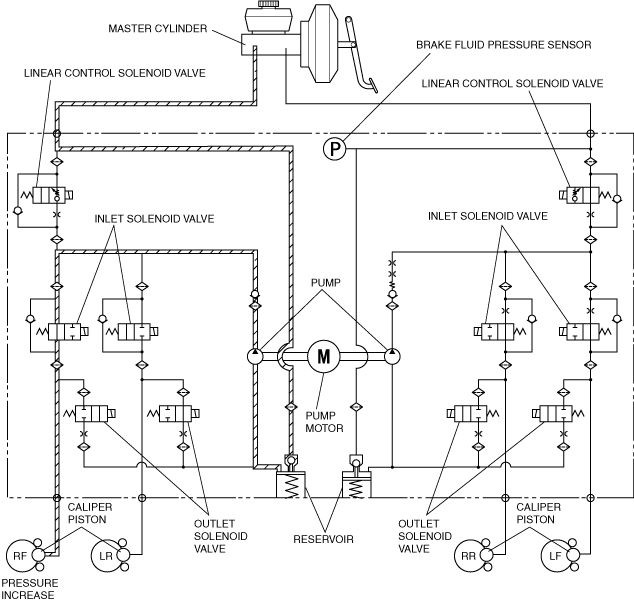

Hydraulic circuit diagram

am6zzn00001809

During DSC control (to suppress understeer tendency)

• When a large understeer tendency is determined, the linear control solenoid valves are energized, switching the hydraulic circuits. At the same time, the pump motor is actuated to operate the pump, supplying brake fluid pressure from the reservoir to the inner rear caliper piston. Also at this time, the inlet solenoid valve of the outer front wheel is energized and the hydraulic circuit of this wheel is closed.

• After a pressure increase, brake fluid pressure is adjusted using the three pressure modes (reduction, maintain, increase) so that the target wheel speed is obtained. (The following figure shows control during a left turn during pressure increase mode.)

Solenoid valve operation table

	Linear control solenoid valve		Inlet solenoid valve				Outlet solenoid valve				Pump motor, pump
	LF—RR	RF—LR	LF	RF	LR	RR	LF	RF	LR	RR	Pump motor, pump
During pressure increase mode	OFF (open)	ON (closed)	OFF (open)	ON (closed)	OFF (open)	OFF (open)	OFF (closed)	ON (open)	OFF (closed)	OFF (closed)	Operating
During pressure maintain mode	OFF (open)	ON (closed)	OFF (open)	ON (closed)	ON (closed)	OFF (open)	OFF (closed)	ON (open)	OFF (closed)	OFF (closed)	Operating
During pressure reduction mode	OFF (open)	ON (closed)	OFF (open)	ON (closed)	ON (closed)	OFF (open)	OFF (closed)	ON (open)	ON (open)	OFF (closed)	Operating

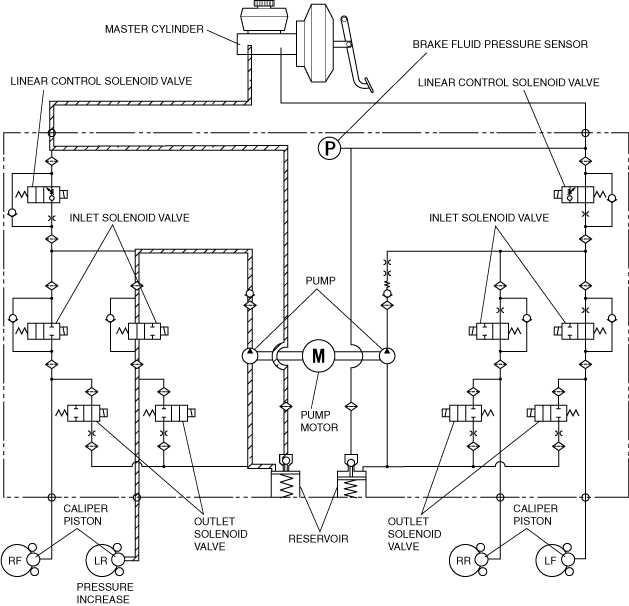

Hydraulic circuit diagram

am6zzn00001810

DSC CM Part Function

• The DSC CM makes calculations using signals input from each sensor, and outputs a brake fluid pressure control signal to the DSC HU to actuate DSC system functions. It also outputs an engine output control signal to the PCM.

• The DSC HU/CM controls the following functions:

Function table

Function name

Contents

ABS control function

•  Controls brake fluid pressure when braking to maintain directional stability, ensure steerability, and reduce stopping distance.

EBD control function

•  Constantly controls proper distribution of brake fluid pressure to the front and rear wheels according to vehicle load, road surface, and vehicle speed conditions to prevent early lock-up of the rear wheels.

TCS control function

•  Controls traction to within the road surface friction limit and according to road and driving conditions to improve starting and acceleration performance, and safety.

DSC control function

•  Suppresses strong over-steer and under-steer tendencies when turning by controlling engine output and braking of each wheel to assure driving safety.

Brake assist control function

•  The brake pedal depression speed and force is calculated from the brake fluid pressure sensor signal. If it exceeds the specification, an emergency braking situation is determined and a higher amount of hydraulic pressure than the normal specified amount is generated in the hydraulic unit and supplied to each wheel based on the activation of each solenoid valve, pump motor, and pump.

•  If a condition is detected in which emergency braking is anticipated by the change in speed of the accelerator pedal position, the gap between the brake pad and disc plate is reduced to enhance the response when braking.

Vehicle roll prevention function (ATX)

•  Prevents the vehicle from moving when it is stopped on a slope and the foot is released from the brake pedal while the i-stop control (engine off) is operating.

Hill Launch Assist (HLA) control function

•  When the vehicle is held at a stop by depressing the brake pedal on a slope with a grade of approx. 3 % (MTX vehicle), or approx. 10 % or more (ATX vehicle), the brake fluid pressure is maintained to prevent the vehicle from rolling backwards even after the driverÅfs foot is released from the brake pedal.

AUTOHOLD

•  The AUTOHOLD function reduces the load on the driver by maintaining the vehicle in a stopped condition evenif the brake pedal is released while the vehicle is stopped.

Secondary collision reduction control function

•  If own vehicle is hit by another vehicle and it is moved by the force of the collision, the brakes on own vehicle are automatically applied to mediate secondary collision damage, and the hazard lights are flashed at the same time to caution surrounding vehicles.

CAN communication function

•  Outputs the vehicle speed signal and DSC system warning control data via CAN lines.

On-board diagnostic system

•  A function that allows important parts of the DSC control system to perform self-diagnosis. In case a malfunction occurs, the warning lights illuminate to alert the driver, and at the same time a DTC is stored in the DSC HU/CM.

•  When a malfunction is determined as a result of the on-board diagnostic test, system control is suspended or limited to prevent any dangerous situation while driving.

Automatic configuration function

•  When the ignition is switched ON or the engine is started after the DSC HU/CM have been replaced, the DSC CM reads data from the instrument cluster via CAN communication to perform automatic configuration.

Function name	Contents
ABS control function	• Controls brake fluid pressure when braking to maintain directional stability, ensure steerability, and reduce stopping distance.
EBD control function	• Constantly controls proper distribution of brake fluid pressure to the front and rear wheels according to vehicle load, road surface, and vehicle speed conditions to prevent early lock-up of the rear wheels.
TCS control function	• Controls traction to within the road surface friction limit and according to road and driving conditions to improve starting and acceleration performance, and safety.
DSC control function	• Suppresses strong over-steer and under-steer tendencies when turning by controlling engine output and braking of each wheel to assure driving safety.
Brake assist control function	• The brake pedal depression speed and force is calculated from the brake fluid pressure sensor signal. If it exceeds the specification, an emergency braking situation is determined and a higher amount of hydraulic pressure than the normal specified amount is generated in the hydraulic unit and supplied to each wheel based on the activation of each solenoid valve, pump motor, and pump. • If a condition is detected in which emergency braking is anticipated by the change in speed of the accelerator pedal position, the gap between the brake pad and disc plate is reduced to enhance the response when braking.
Vehicle roll prevention function (ATX)	• Prevents the vehicle from moving when it is stopped on a slope and the foot is released from the brake pedal while the i-stop control (engine off) is operating.
Hill Launch Assist (HLA) control function	• When the vehicle is held at a stop by depressing the brake pedal on a slope with a grade of approx. 3 % (MTX vehicle), or approx. 10 % or more (ATX vehicle), the brake fluid pressure is maintained to prevent the vehicle from rolling backwards even after the driverÅfs foot is released from the brake pedal.
AUTOHOLD	• The AUTOHOLD function reduces the load on the driver by maintaining the vehicle in a stopped condition evenif the brake pedal is released while the vehicle is stopped.
Secondary collision reduction control function	• If own vehicle is hit by another vehicle and it is moved by the force of the collision, the brakes on own vehicle are automatically applied to mediate secondary collision damage, and the hazard lights are flashed at the same time to caution surrounding vehicles.
CAN communication function	• Outputs the vehicle speed signal and DSC system warning control data via CAN lines.
On-board diagnostic system	• A function that allows important parts of the DSC control system to perform self-diagnosis. In case a malfunction occurs, the warning lights illuminate to alert the driver, and at the same time a DTC is stored in the DSC HU/CM. • When a malfunction is determined as a result of the on-board diagnostic test, system control is suspended or limited to prevent any dangerous situation while driving.
Automatic configuration function	• When the ignition is switched ON or the engine is started after the DSC HU/CM have been replaced, the DSC CM reads data from the instrument cluster via CAN communication to perform automatic configuration.

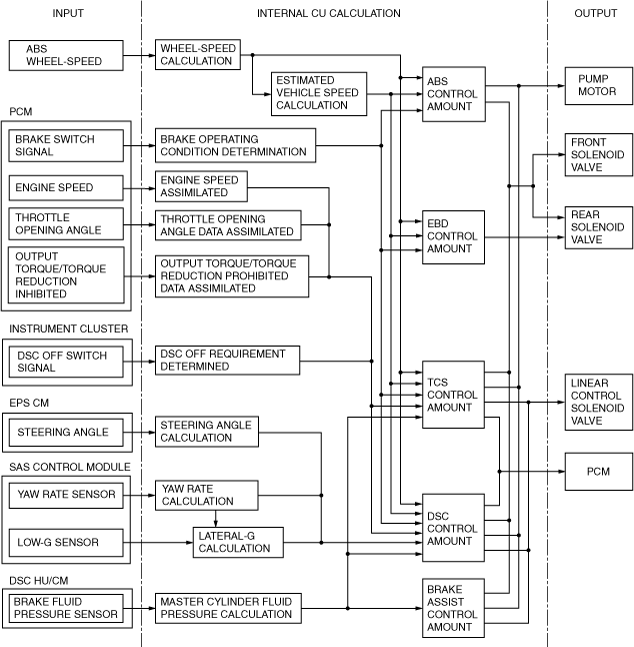

Block diagram
