CLUTCH [D66M-R, D66MX-R]
id0510mf283600
Purpose, Function
• The clutch unit transmits or cuts the drive force between the engine and MTX according to the clutch pedal operation.
Construction/Operation
• The construction/operation of the clutch unit is the same as the original MTX (ex: A26M-R, A26XM-R).
• The wear assurance function of the clutch cover maintains the set load of the clutch cover unchanged even as the clutch disc becomes worn, thereby extending disc life.

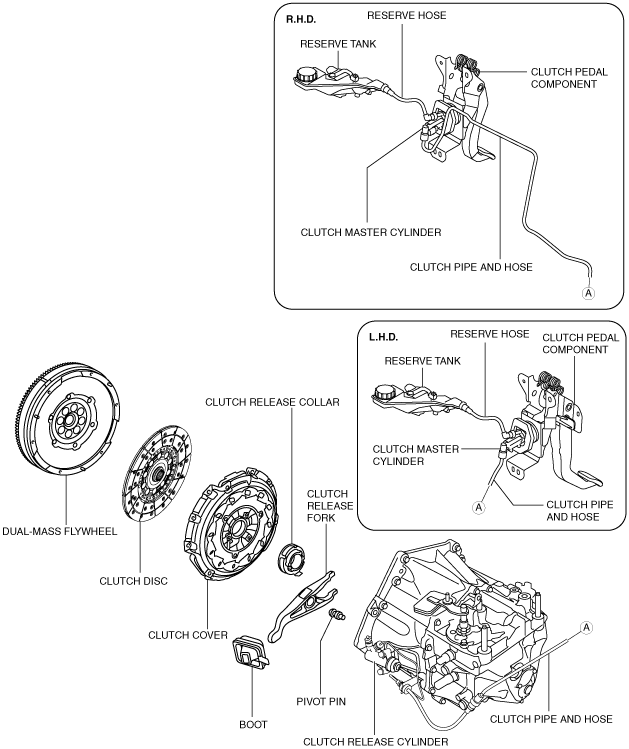

Structural View
