OIL SEAL (DIFFERENTIAL) REPLACEMENT [C66M-R]

id0515m8160100

1. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2. Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R].)

3. Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4. Disconnect the front drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5. Remove the oil seal (LH).

ac5uuw00006393

6. Remove the oil seal (RH).

ac5uuw00006394

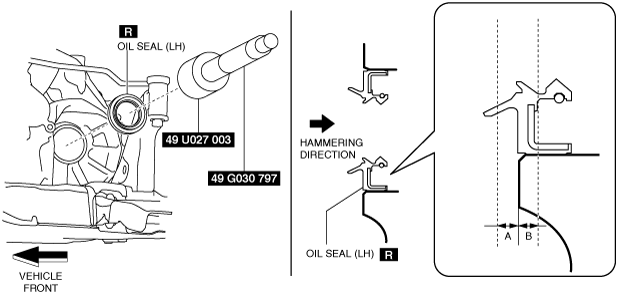

7. Using the SSTs and a hammer, install a new oil seal (LH).

ac5ccw00000526

A: 0.3 mm {0.01 in}

B: 0.3 mm {0.01 in}

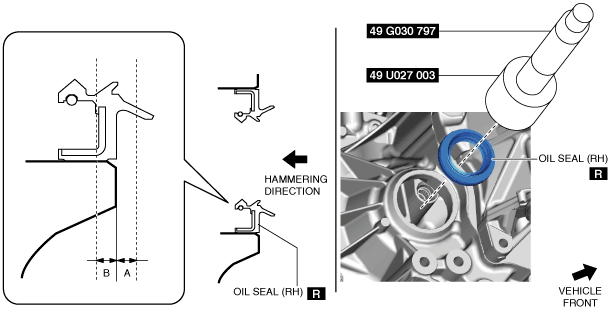

8. Using the SSTs and a hammer, install a new oil seal (RH).

ac5uuw00006395

A: 0.3 mm {0.01 in}

B: 0.3 mm {0.01 in}

9. Coat the lip of each oil seal with manual transaxle oil.

10. Connect the front drive shaft (RH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11. Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12. Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R].)

13. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
