•  Shift solenoid No.3 adjusts the hydraulic pressure in the R-3-5 brake circuit based on the current demand from the TCM according to the vehicle conditions.

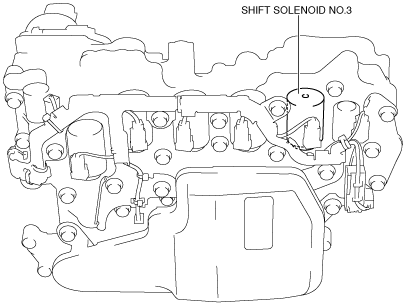

•  Shift solenoid No.3 is installed to the solenoid control valve body.

•  Shift solenoid No.3 is a normally open type linear solenoid.

am3uun00002356

•  Adjusts the R-3-5 brake pressure by increasing/decreasing the energization current to shift solenoid No.3 according to the signal from the TCM.
