TURBINE/INPUT SHAFT SPEED SENSOR, OUTPUT SHAFT SPEED SENSOR [GW6A-EL, GW6AX-EL]
id0517i2360800
Purpose/Function
• The turbine/input shaft speed sensor detects the rotation speed of the input shaft (low clutch drum).
• The output shaft speed sensor detects the rotation speed of the output shaft (primary gear).
• The turbine/input shaft speed sensor and output shaft speed sensor signals are used for automatic shift control, manual shift control, and the on-board diagnostic system.

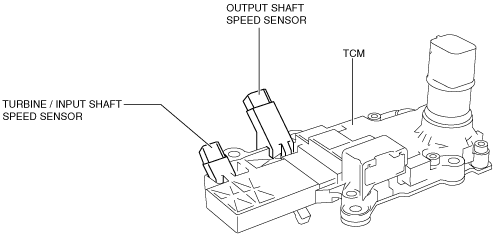

Construction
• The turbine/input shaft speed sensor and output shaft speed sensor are both integrated with the TCM and built-into the control valve body.
Operation
• The turbine/input shaft speed sensor changes the output signal according to the rotation speed of the low clutch drum.
• The output shaft speed sensor changes the output signal according to the rotation speed of the primary gear.
