TIE-ROD END REPLACEMENT

id061300801200

Removal

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the snap pin from the tie-rod end.

am6xuw00010520

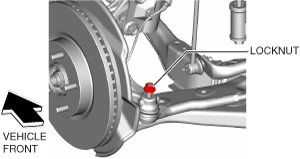

3.  Loosen the tie-rod end locknut.

am6xuw00010521

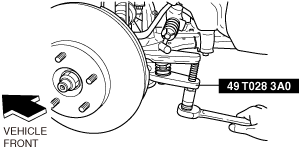

4.  Detach the tie-rod end from the steering knuckle using the SST.

ac5uuw00006361

5.  Remove the locknut from the tie-rod end.

am6xuw00010522

6.  Place alignment marks as shown in the figure for proper installation.

am6xuw00009735

7.  Remove the tie-rod end.

am6xuw00009736

Installation

1.  Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

am6xuw00009737

2.  Place alignment marks as shown in the figure for proper installation.

am6xuw00009738

Note

•  "R" is inscribed on the right side of the tie-rod end and "L" is inscribed on the left side of the tie-rod end. Verify if the part is for the left or right side before installation because the left and right parts of the tie-rod end have different shapes.

am6xuw00009739

3.  Adjust dimension A shown in the figure to the standard, then assemble the tie-rod end.

am6xuw00009740

•  If not within the specification, make adjustments so that dimension A is within the specification.

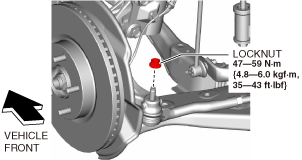

4.  Install the tie-rod end to the steering knuckle.

am6xuw00010523

5.  Install a new snap pin to the tie-rod end.

am6xuw00010524

6.  Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

7.  After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
