FOREWORD [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2820100

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

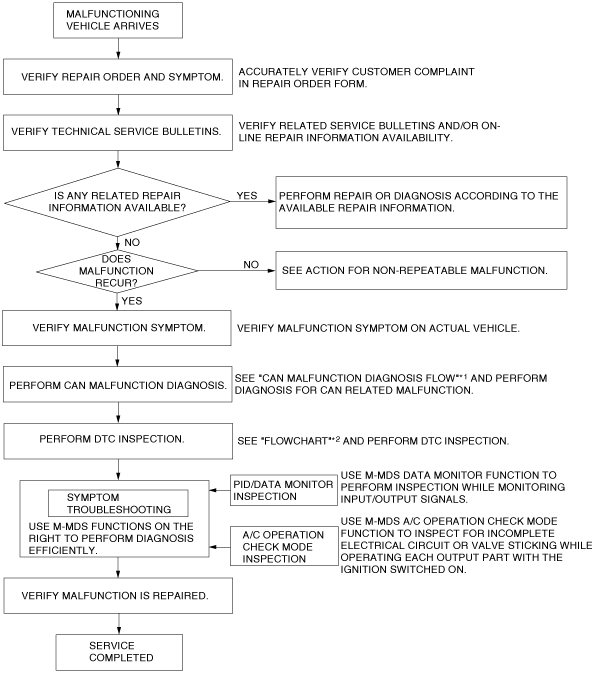

Troubleshooting Procedure

am3uuw00012900

*1 :CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (R.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)], CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)]

*2 :FLOWCHART [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Verify that a DTC has been recorded in the memory.(See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

ac5uuw00007565

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• Tool used (Reference): terminal test kit (49US-15-1A0)
