REFRIGERANT PRESSURE CHECK

id071000300200

1.  Install the manifold gauge set. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Start the engine and warm it up.

3.  Prepare the vehicle as follows.

•  Airflow volume: MAX HI

•  A/C switch: ON

•  Air intake port: REC

•  Airflow temperature: MAX COLD

•  Airflow mode: VENT

•  Bonnet: Open

•  All the doors and the trunk/liftgate: Close

•  All the windows: Close

•  Engine speed: 1,500 rpm

4.  Verify the pressure indicated on the manifold gauge and ambient temperature.

Note

•  Measure the refrigerant pressure after approx. 10 min have elapsed from engine start.

5.  Verify that there are high/low pressure value readings within the shaded areas of the figure.

HFC-134a

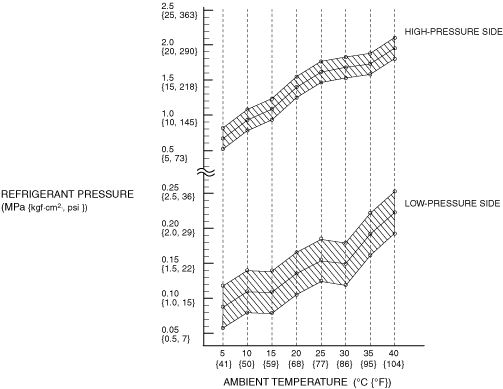

•  SKYACTIV-G 2.0, SKYACTIV-G 2.5

am6zzw00015941

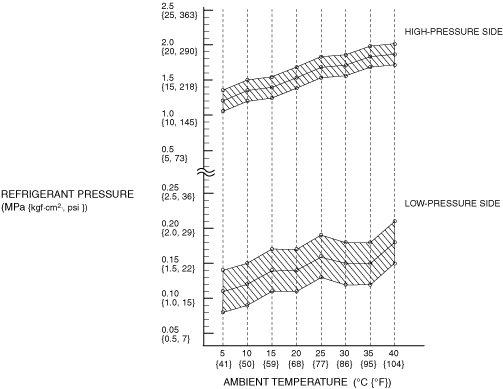

•  SKYACTIV-G 2.5T

am6zzw00015942

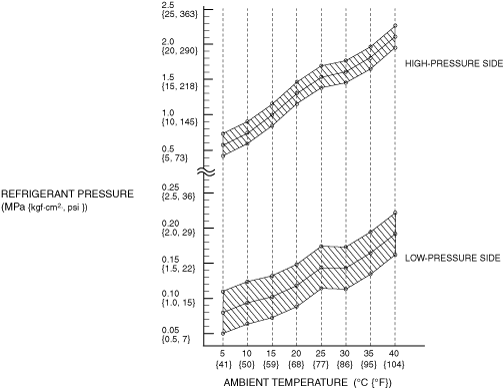

•  SKYACTIV-D 2.2

am6zzw00015943

HFO-1234yf

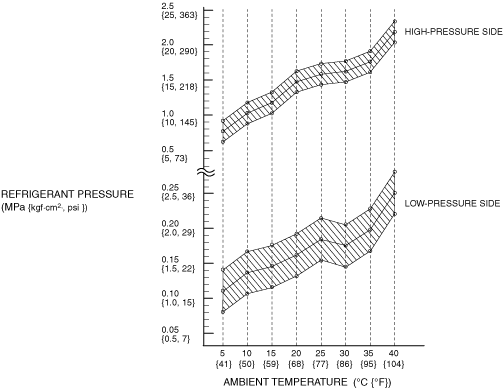

•  SKYACTIV-G 2.0, SKYACTIV-G 2.5

am6zzw00015944

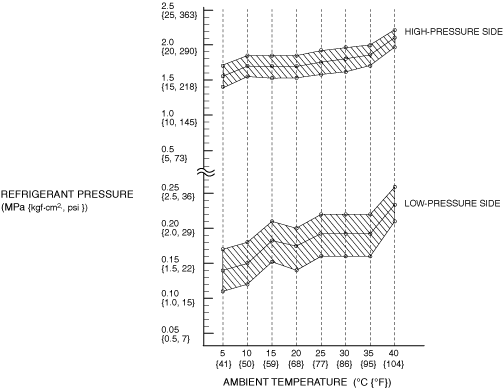

•  SKYACTIV-G 2.5T

am6xuw00013274

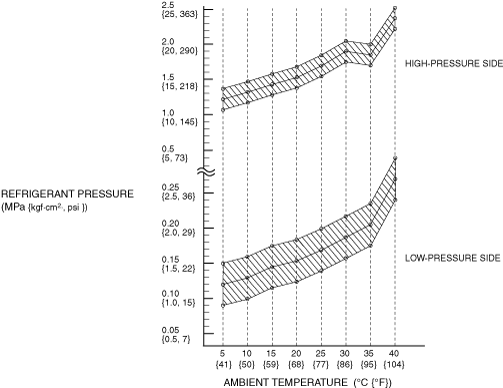

•  SKYACTIV-D 2.2

am6zzw00015945
