A/C UNIT

id071100001100

Purpose/Function

• The A/C unit opens/closes the air mix door and the airflow mode door.

Structure/Construction

• The A/C unit which integrates the cooling and heater units.

• The A/C unit consists of the following parts.

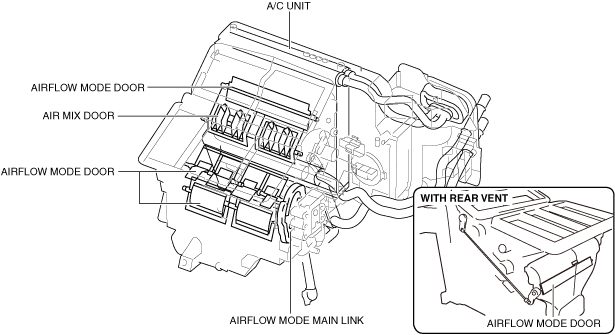

L.H.D.

am6zzn00005321

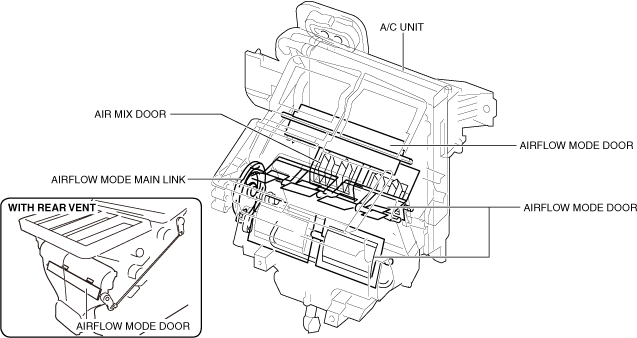

R.H.D.

am6zzn00005322

Operation

• For the operation, refer to the [VENTILATION SYSTEM]. (See VENTILATION SYSTEM.)

Fail-safe

• Not applicable
