•  Engine coolant is circulated inside the heater core.

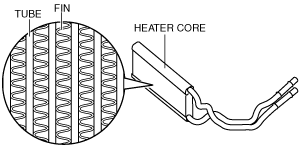

•  The heater core consists of a tube which passes engine coolant, and the heat radiation fin.

ac5uun00000492

•  For the operation, refer to the [HEATER SYSTEM]. (See HEATER SYSTEM.)

•  Not applicable
