MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id071100006537

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

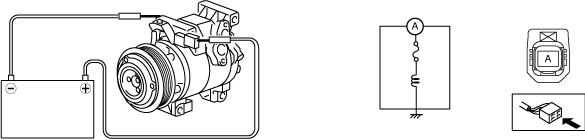

3.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

am6zzw00017601

4.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
