BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

L.H.D.

Caution

• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1. Disassemble in the order indicated in the table.

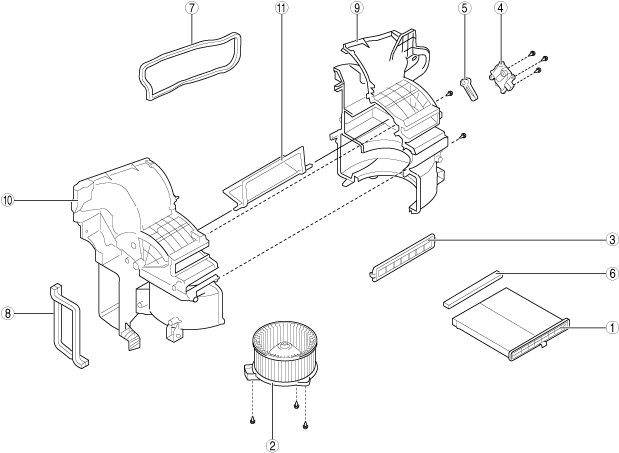

am6zzw00015977

1

Air filter

2

Blower motor

3

Cover

4

Air intake actuator

5

Air intake link

6

Polyurethane (1)

7

Polyurethane (2)

8

Polyurethane (3)

9

Blower case (1)

10

Blower case (2)

11

Air intake door

2. Assemble in the reverse order of disassembly.

R.H.D.

Caution

• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1. Disassemble in the order indicated in the table.

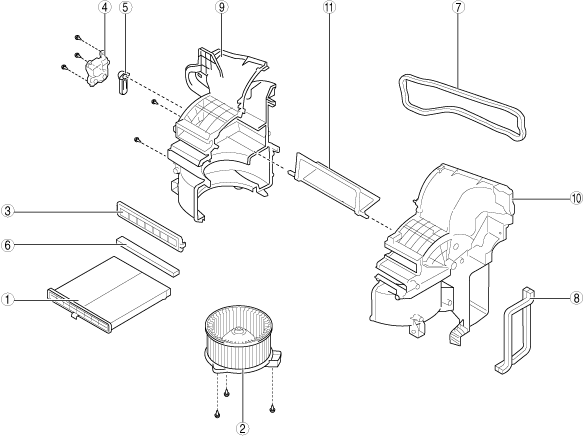

am6zzw00015978

2. Assemble in the reverse order of disassembly.

1	Air filter
2	Blower motor
3	Cover
4	Air intake actuator
5	Air intake link
6	Polyurethane (1)
7	Polyurethane (2)
8	Polyurethane (3)
9	Blower case (1)
10	Blower case (2)
11	Air intake door
